Roland TR-505 Switch-board Replacement

Written By: HelloMacOS
  • Comments: 0
Roland TR-505 Switch-board Replacement

Difficulty

Moderate

Steps

6

Time Required

20 minutes

Introduction

This guide will show you how to replace the switch board in your Roland TR-505

  1. nMNgOOcvyUugspJn
    nMNgOOcvyUugspJn
    Pi12uEgiYjNoAYWM
    vEKNmuwiTVRMBqQi

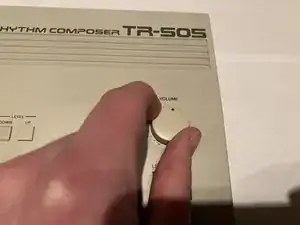

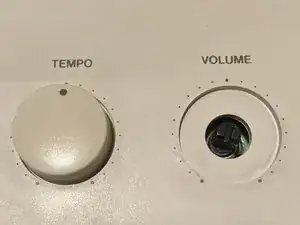

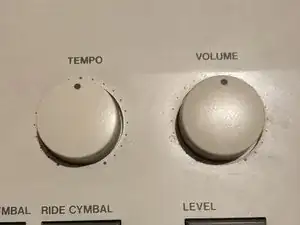

    • With the dials in front of you carefully pull them up and away from the hide and shaft

  2. FU3OCqFTlMUMpuS1

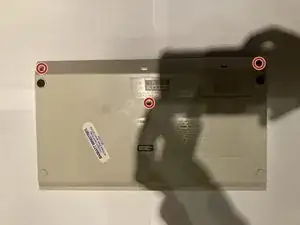

    • Remove these Philips PH1 screw

    • Not all screws are the same,make sure to keep them organised:-)

  3. SPJOUakpx6XIrMUE
    SPJOUakpx6XIrMUE
    oGWloofr2HnkNfCW

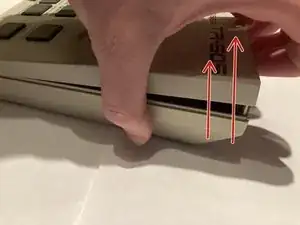

    • Carefully separate the 2 half’s

    • If it’s not coming apart you may need a plastic pry tool to assist you

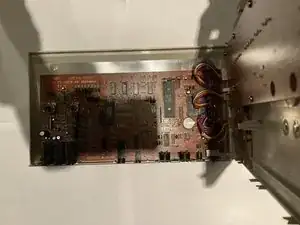

    • Once separated:with the ports facing you open the device like a book with the top panel lifted up slightly,make sure to open it to the right

  4. 25iTKH1IqHXwLSXZ

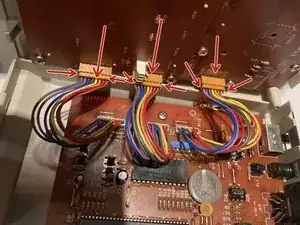

    • Carefully unplug the connectors from their sockets by pulling on the tabs that stick out from the cable

    • Do not pull on the cable itself as you risk pulling the cables out of the connector

  5. bqKhojEMM4WdKvQU

    • with the connectors disconnected you can lift the top half away.

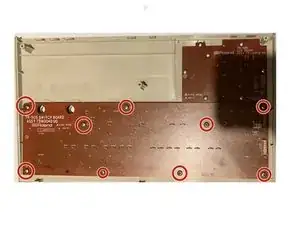

    • to take the switchboard off take out these PH 1 Philips screws

    • Thumbs up to Roland for adding arrows to where the screws are on the switch-board:-)

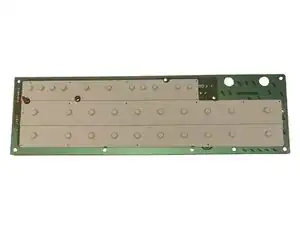

  6. 4hjARVaEdDWnstnY

    • Carefully lift the switch-board out

Conclusion

To reassemble your device, follow these instructions in reverse order.
