Ridgid R175RNE Swivel Air Plug Replacement

Written By: Brandin M

Difficulty

Easy

Steps

Time Required

1 - 2 minutes

Introduction

If your Ridgid R175RNE nailer is firing sluggishly or not at all, then the air-line connector may need to be replaced.

The air-line connector is used to connect the nailer to your air supply, so that the nailer may function.

Caution: Turn off and remove the air supply before beginning this guide.

Disconnect the nailer from the air compressor before beginning.

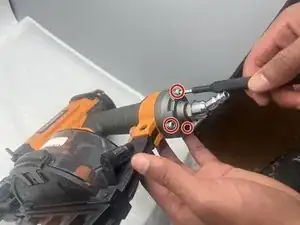

Use a 5/32" Allen wrench to remove all three 25 mm screws that secure the swivel air plug.

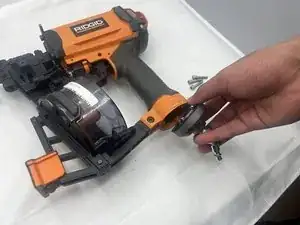

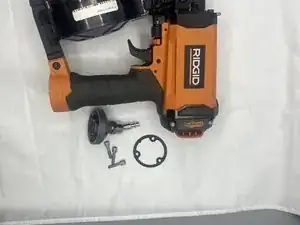

Remove the swivel air plug.

Conclusion

To reassemble your device, follow these instructions in reverse order.
