Replacing Olympus Stylus Tough-6000 Battery/Memory Card Cover Lock

Written By: Shannon Cooney
  • Comments: 0
Replacing Olympus Stylus Tough-6000 Battery/Memory Card Cover Lock

Difficulty

Easy

Steps

5

Time Required

20 minutes

Introduction

I will be providing clear and easy steps on how to replace your Battery/Memory Card Cover Lock on your digital camera without having to buy another one.

  1. Q5HPjIAdWbbaZZGY

    • Turn the camera over so the bottom is facing upwards.

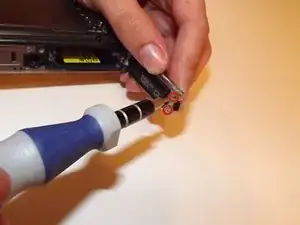

  2. rM1qAK1ASJ5b2ENT

    • Pull open the latch on the right hand side to expose the two screws holding the lock in place.

    • Use your Phillips #00 screwdriver to remove both of the screws.

  3. uo2kk6pEw6aqAR6b

    • Remove the small black lock from the latch.

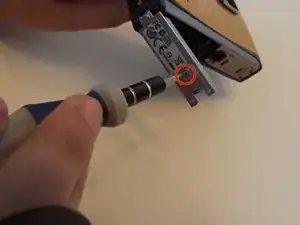

  4. vuReyriddTq6JwHd

    • Open the latch on the left hand side

    • Remove the single screw with your Phillips #00 screwdriver.

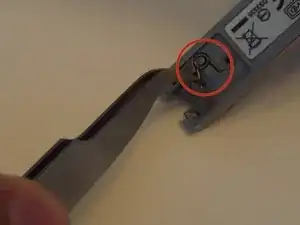

  5. AE2x5XObCcZXcuQv

    • Use your tweezers for this step.

    • After you have removed the screw holding down the cover you will see a single spring.

    • Make sure spring is in place to be able to close lock properly.

Conclusion

To reassemble your device, follow these instructions in reverse order.
