Razer Tartarus V2 Keycap Stabilizers Replacement

Written By: Derrick
  • Comments: 0
Razer Tartarus V2 Keycap Stabilizers Replacement

Difficulty

Moderate

Steps

5

Time Required

15 minutes

Introduction

The keycap stabilizers on the Razer Tartarus V2, model number RZ07-02270100-R3U1, can wear out after the keys are clicked many times or too aggressively. This causes the keys to get stuck as the stabilizers are what push them back up after a "click". This replacement guide is designed to help you replace your Keycap stabilizer and extend the overall lifespan of your device.

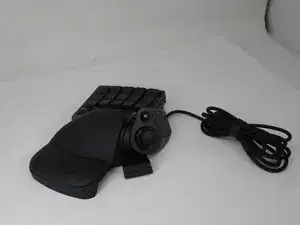

  1. esqXmtbMOe3gNYbF
    esqXmtbMOe3gNYbF
    Eat2r3IO1dVQAQ6s

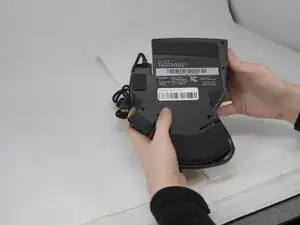

    • Turn the keypad upside down.

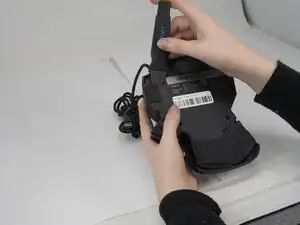

  2. gINNFspeR6QpTnNE
    gINNFspeR6QpTnNE
    TTyLAo5HFtbDwmdb
    qmydu2IZ31YIBDpI

    • Gently peel off the rubber feet with a Jimmy.

    • Set the rubber grip pads aside so you can reapply them later.

    • Use a Phillips #0 screwdriver to remove the following screws:

    • Twelve 6.4 mm-long screws

    • Two 3.7 mm-long screws

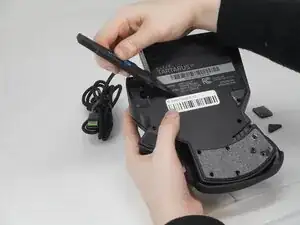

  3. VboHTghAokWRsYV6
    VboHTghAokWRsYV6
    yLVlLJaSIxtIpgXF
    DLHIZSNOqlW6MGUJ

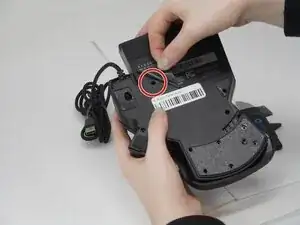

    • Peel up the bottom left corner of the largest sticker.

    • Remove the 6.4 mm-long Phillips #0 screw.

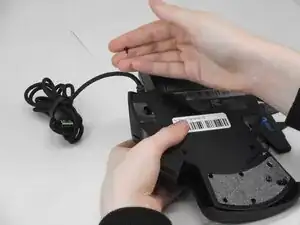

  4. voILCt1KDWsKB5gX
    voILCt1KDWsKB5gX
    1EDGne2X5EMIXmFF
    ypUYc6Zf4NmI46XX

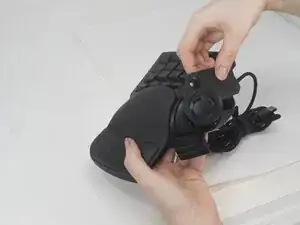

    • Carefully lift the joystick module up and out.

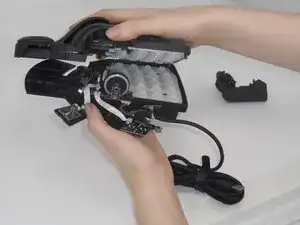

    • Separate the top and bottom casing of the keypad.

    • Use an Opening tool to pry the case open along the edges if necessary.

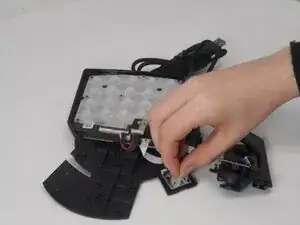

  5. TE2kxTpdqPYxQkWx
    TE2kxTpdqPYxQkWx
    dyscIKCd3XsWEebS

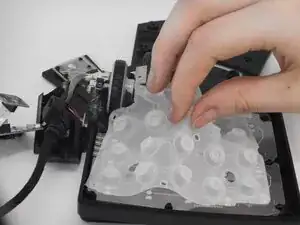

    • Locate the two rubber stabilizers:

    • One large stabilizer is positioned under keys 1–19.

    • One small stabilizer is under key 20.

    • Carefully pull each stabilizer up by hand from its respective board (motherboard or daughterboard)

    • Avoid applying excessive force or using sharp tools to prevent scratching or damaging the boards beneath the stabilizers.

Conclusion

To reassemble your device, follow these instructions in reverse order.
