Razer Tartarus V2 Key 20 Replacement

Written By: Derrick
  • Comments: 0
Razer Tartarus V2 Key 20 Replacement

Difficulty

Moderate

Steps

3

Time Required

20 minutes

Introduction

Key 20 on the Razer Tartarus V2, model number RZ07-02270100-R3U1, can become stuck or damaged. This key is different from the other 19 keys due to its additional support bar. This guide will explain how to replace it.

  1. 6vsExUE5FAbVSUp4
    6vsExUE5FAbVSUp4
    sQwFUBM2FFLs4XSX

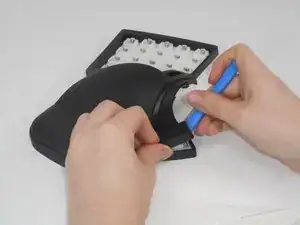

    • Carefully pop off Key 20 using an iFixit opening tool.

    • If necessary, remove the stability bar by holding one side steady and using the opening tool to gently leverage the other side out.

    • Caution is needed when removing the stability bar.

  2. IjwoFkutQjPGbNvI

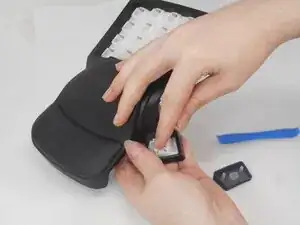

    • Check for a stuck key stem.

    • If stuck, push the stem out from the back of the top casing.

  3. OclDw3tJbHENnuTU
    OclDw3tJbHENnuTU
    nhCOnP6BmuXOJD3T

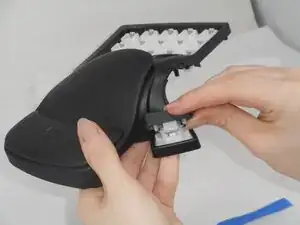

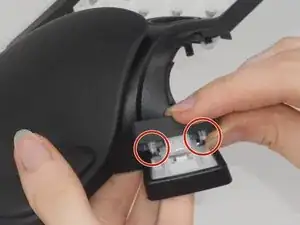

    • Locate the two small protrusions on the bottom of Key 20.

    • These have small inner-edge slots that must align with the two arms of the stability bar.

    • Hold one arm of the bar in place with one finger to prevent it from falling out during alignment.

    • Carefully press the key down into place, making sure both protrusion slots align with the bar arms.

    • This may take a few tries if the bar slips out of position.

Conclusion

To reassemble your device, follow the above steps in reverse order.
