Razer Tartarus V2 Cord Replacement

Written By: Derrick
  • Comments: 0
Razer Tartarus V2 Cord Replacement

Difficulty

Moderate

Steps

6

Time Required

25 minutes

Introduction

The cord on the Razer Tartarus V2, model number RZ07-02270100-R3U1, can break or become worn out and would need replaced. This replacement guide will help you replace the cord on your device.

  1. esqXmtbMOe3gNYbF
    esqXmtbMOe3gNYbF
    Eat2r3IO1dVQAQ6s

    • Turn the keypad upside down.

  2. gINNFspeR6QpTnNE
    gINNFspeR6QpTnNE
    TTyLAo5HFtbDwmdb
    qmydu2IZ31YIBDpI

    • Gently peel off the rubber feet with a Jimmy.

    • Set the rubber grip pads aside so you can reapply them later.

    • Use a Phillips #0 screwdriver to remove the following screws:

    • Twelve 6.4 mm-long screws

    • Two 3.7 mm-long screws

  3. VboHTghAokWRsYV6
    VboHTghAokWRsYV6
    yLVlLJaSIxtIpgXF
    DLHIZSNOqlW6MGUJ

    • Peel up the bottom left corner of the largest sticker.

    • Remove the 6.4 mm-long Phillips #0 screw.

  4. voILCt1KDWsKB5gX
    voILCt1KDWsKB5gX
    1EDGne2X5EMIXmFF
    ypUYc6Zf4NmI46XX

    • Carefully lift the joystick module up and out.

    • Separate the top and bottom casing of the keypad.

    • Use an Opening tool to pry the case open along the edges if necessary.

  5. gbOXLENrZIVJZDB3

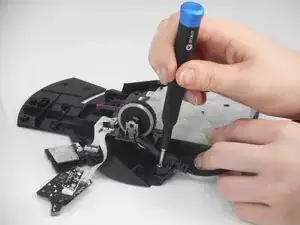

    • Remove the 5.9 mm-long Phillips #0 screw that secures the cord.

  6. EBvItgUaW1E6KPG6
    EBvItgUaW1E6KPG6
    2MZXNmAaHqvLqKcZ

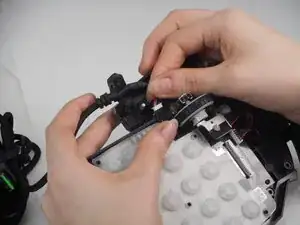

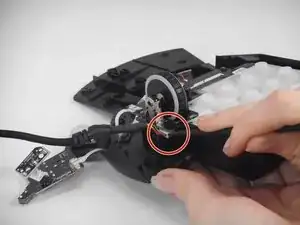

    • Use the pointed edge of a spudger to gently "walk" the white connector directly out of its socket.

    • Avoid pulling on the cables.

    • To reattach the cord, carefully align the connector end with the prongs inside the connection slot. Misalignment or using too much force can bend the prongs, potentially making the connection unusable. Once aligned, gently press the connector into the slot until it is fully seated.

Conclusion

To reassemble your device, follow these instructions in reverse order.
