Razer BlackWidow V3 Tenkeyless Switch Replacement

Written By: Zach Nelson

Comments: 0

Razer BlackWidow V3 Tenkeyless Switch Replacement

Difficulty

Moderate

Steps

Time Required

10 minutes

Introduction

If your Razer BlackWidow V3 Tenkeyless keyboard is experiencing unresponsive or damaged keys, this switch replacement guide will help you restore full functionality. Since the switches are an integral part of the keyboard’s performance, replacing them can resolve many common issues. For this guide, you will need a keycap puller, a soldering iron, desoldering pump or wick, and replacement switches compatible with your keyboard. The steps are straightforward, but involve basic soldering—so be sure to follow each instruction carefully.

Tools

Parts

Step 1

Before you start, unplug the keyboard from your computer to prevent accidental damage.
Use a keycap puller remove all keycaps.

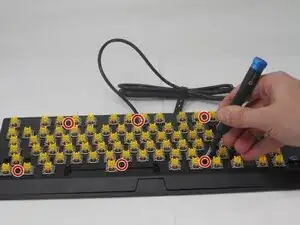

Step 2

Carefully examine the bottom of the keyboard, has small screws securing the backplate.
Remove the 7.8 mm screws that secure the faceplate using a Phillips #0 screwdriver.
Avoid applying excessive force.

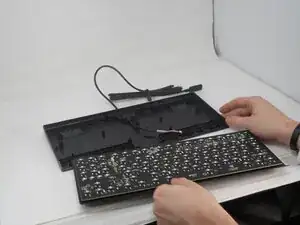

Step 3

Carefully separate the backplate from the main keyboard body.
A plastic opening tool can be helpful to gently pry the pieces apart if needed.
Be patient and work slowly to avoid breaking any clips or the usb-connector.

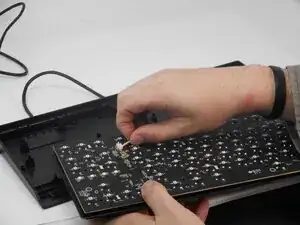

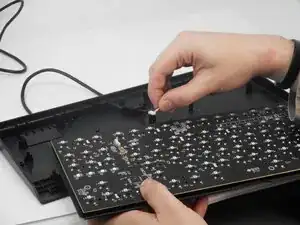

Step 4

Pull the white USB connector directly out of its socket.
Ensure the cable is pulled straight back to prevent the usb-connector snapping.

Step 5

Use a soldering iron to heat the two solder points securing the switch to the board, then apply a solder wick to absorb and remove the melted solder.
The soldering process involves high heat—handle the soldering iron carefully to avoid burns or damage to the circuit board.

Conclusion

To reassemble your device, follow these instructions in reverse order.
