Philips Norelco OneBlade Exterior Casing Replacement

Written By: Joshua Etchberger
  • Comments: 1
Philips Norelco OneBlade Exterior Casing Replacement

Difficulty

Easy

Steps

3

Time Required

2 - 5 minutes

Introduction

Replacing the exterior casing on a Philips Norelco OneBlade requires little time, no tools, and a replacement casing.

  1. q2NolUtVosPmKfwR
    q2NolUtVosPmKfwR
    2rX1LXU3PPTa3rOM
    gg1ag6mKF6GCeaKv

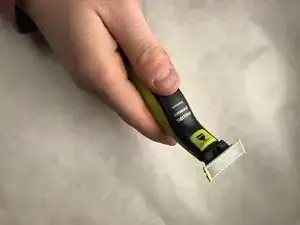

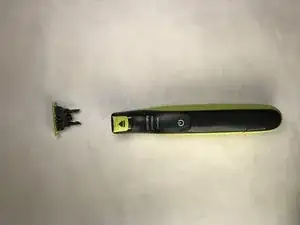

    • Ensure razor is off, and razor blade has been removed.

  2. 4Ec4OHFUcUDrASkM
    4Ec4OHFUcUDrASkM
    SEIkMmY2pBvs5ffv

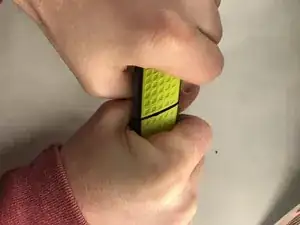

    • Locate crease in bottom third of razor.

    • Hold razor in both hands, and place thumbs near crease.

    • Slightly bend the razor near crease.

    • Pull top razor apart.

    • Caution, device may turn on upon removal. Turn off razor before continuing.

    This is really difficult to tear apart. I tried different methods but could not open it. It's not clear how to bend it and if it makes a difference if the bending happens on the black or the yellow side.

    huedrant -

  3. eQZeYlqogLucd6ZB

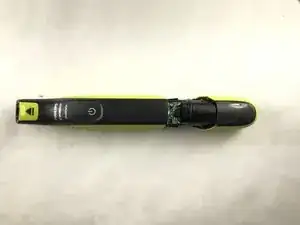

    • Power button should face forward in same direction as circuit board. The crease on each casing component should line up.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Please dispose of exterior casing properly. For recycling information, please contact your local waste management facilities or visit www.recycle.philips.com
