Introduction
Power cords can become easily broken or frayed, which can cause potential risks. This guide will teach you how to replace a damaged or broken power cord for the Philips DVP5992-F7.
Tools
-
-

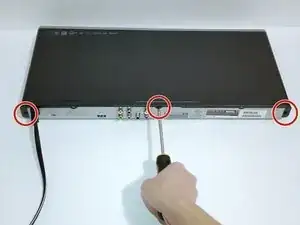

Remove the three 6.4 mm Phillips #1 screws on the back of the device with a Phillips head screwdriver.
-

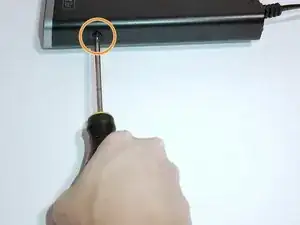

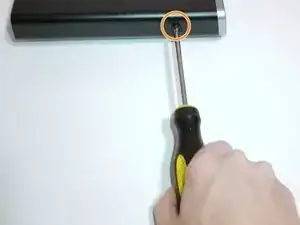

Remove the 6.4 mm Phillips #1 screws on each side of the device.
-
-
-

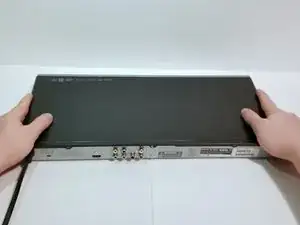

Remove the top plate of the DVD by firmly grasping the player on both sides.
-
Shift the top plate towards the backside of the player.
-
Lift the back half of the top plate up to remove it from the player.
-
-
-

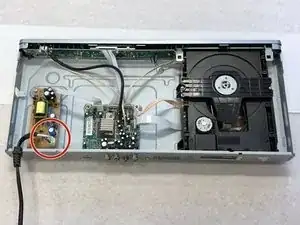

Locate the power cable connector inside the DVD player.
-

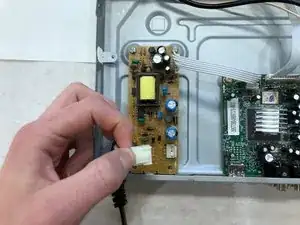

Pinch down on both sides of the cable connector.
-

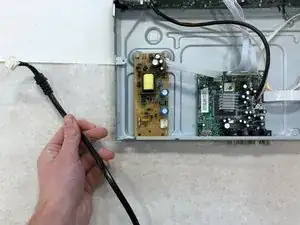

Gently pull upwards on the cable connector while wiggling it to remove it from the DVD player.
-
To reassemble your device, follow these instructions in reverse order.
