Panasonic Lumix DMC-ZS8 Mounting Bracket Replacement

Written By: Trevor Meyers
  • Comments: 0
Panasonic Lumix DMC-ZS8 Mounting Bracket Replacement

Difficulty

Easy

Steps

4

Time Required

15 - 20 minutes

Introduction

Most cameras have mounting brackets on the bottom side of the camera that allow the user to attach the camera to a tripod or other mounting device. These mounting brackets are very easy to cross thread or strip. This guide will help you replace the mounting bracket of the camera.

  1. J6qugT4IQBVEFlo2
    J6qugT4IQBVEFlo2
    rSKTTrKE1TDyeTwQ
    AZvqiUVfwPVd5BGh

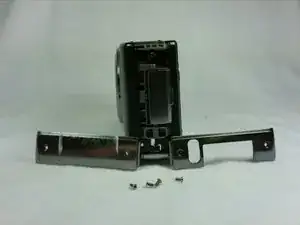

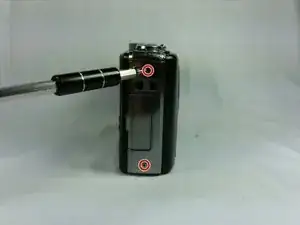

    • Remove the side panels by unscrewing the Phillips head screws on both sides of the camera.

  2. HXbgAlUmACEAPZUV
    HXbgAlUmACEAPZUV
    EfxYW6qJavjWWBbh
    PsWFEwiCOMnTpLoB

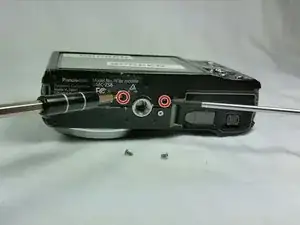

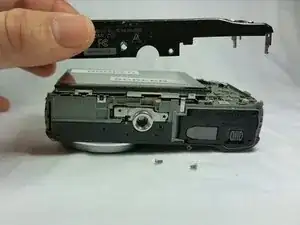

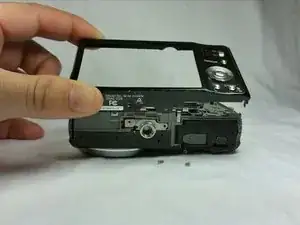

    • Remove the back panel by unscrewing the two Phillips head screws on the bottom of the camera towards the back.

    • Lift the back panel from the camera and set it aside.

  3. ZD6sFY3HE5OHrOoT
    ZD6sFY3HE5OHrOoT
    ZdX3SeDFO22wIOMx
    wimPAu3KHxyVryQH

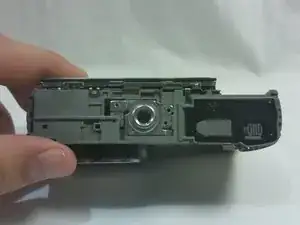

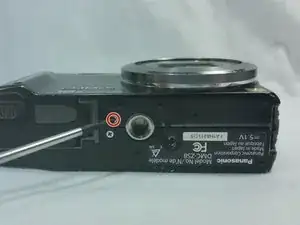

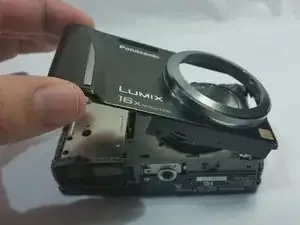

    • Unscrew the Phillips head screw shown in the picture to remove the front panel.

    • Remove the front panel to expose the bracket at the bottom of the camera.

  4. 22MNZNEXpcTDfCSK
    22MNZNEXpcTDfCSK
    kyRqbhyjWyGBwFLF
    YPmeAWvi5WUr6GUL

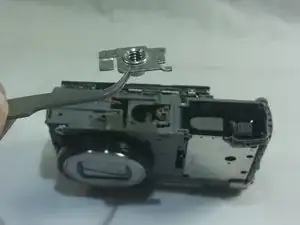

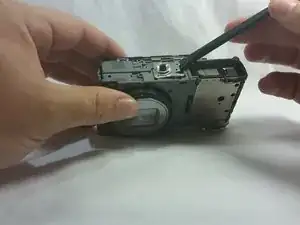

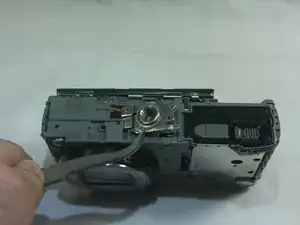

    • Pry the right side of the bracket up to allow you to grab the bracket with tweezers.

    • Grab the bracket with tweezers and slide it toward the battery door to remove it from the frame of the camera.

Conclusion

To reassemble your device, follow these instructions in reverse order.
