Introduction
This guide will show you how to replace the speaker through a few steps.
Tools
-


-

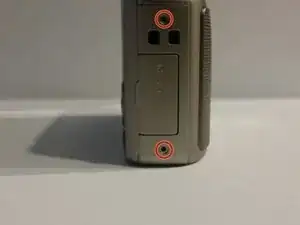

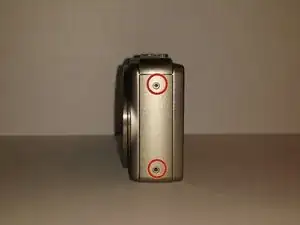

Remove the four 3.4 mm screws from the right and left sides of your Panasonic Lumix Camera.
 -

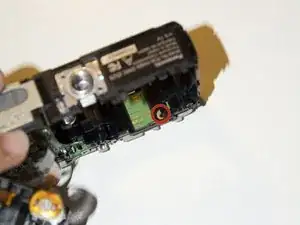

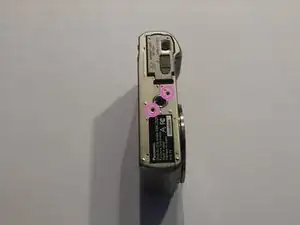

Remove the two 2.6 mm screws located next to the battery.

 -

 -


-

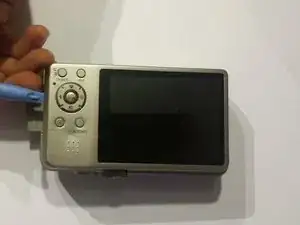

Use the plastic opening tool to lift off the rear cover of your device. Go gently to avoid breaking anything.
 -

The easiest place to open your device is from the HDMI port.

 -

 -


-

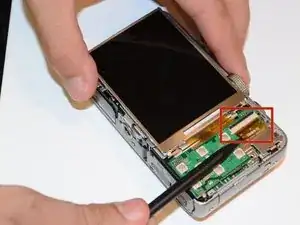

Use a spudger to lift the LCD ribbon cable locking bar by angling it up, then withdraw the ribbon.
 -

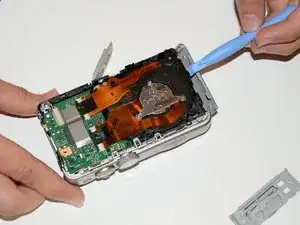

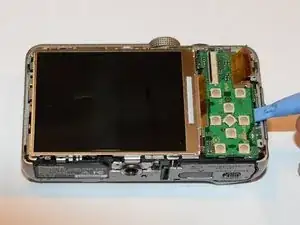

Use the plastic opening tool at the bottom right hand side of the button board to lift it up and out.
 -

The buttons board comes out with a "click" as it snaps out of a connector below.

 -

 -


-

The LCD is retained by a clip on the left hand side, which you can release with a plastic opening too.
 -

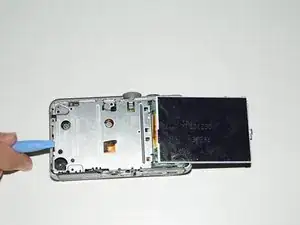

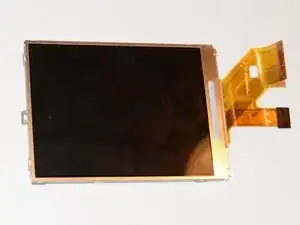

Lift the LCD from the left hand side, disengaging it at the right hand side from two small tabs.

 -

 -


-

Remove the two 4.2 mm screws in order to remove the inner cover located beneath the screen.
 -

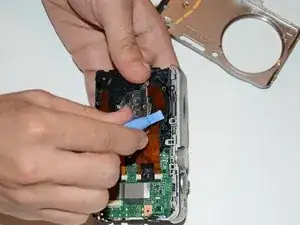

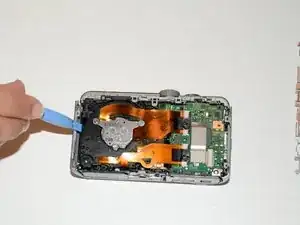

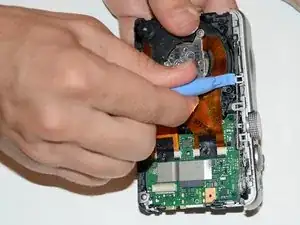

Having removed the screws, use the plastic opening tool to lift off the inner cover, releasing it from clips on the top and bottom edges.

 -

 -


-

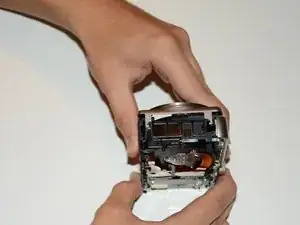

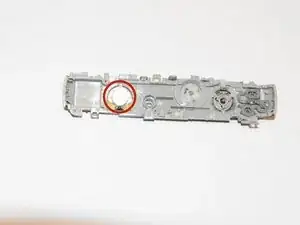

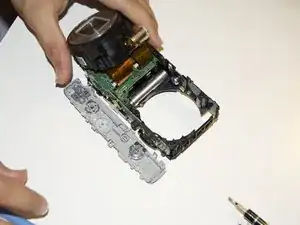

Release the top cover by lifting several tabs with the plastic opening tool. Go gently to avoid breaking them.

 -


To reassemble your device, follow these instructions in reverse order.
One comment
In step 5, comparing it with the similar DMC-TZ35 I rather think there should be 3 screws, not 2. A 3rd hole can be seen at the bottom.
