Panasonic Bread Bakery SD-251 Belt Drive Replacement

Make sure the machine is not under power and

remove the inner container

Remove the screw on the left side of the hinge of the lid (whith a philips 1 screwdrive)

After the screw is removed, you can move the lid (in open position) to the other side and slide it off the hinge (removing the lid completely)

Turn the complete machine upside down

Remove the four (PH1) screws from the four rubber stands.

Remove the two normal screws from the shorter sides (normal PH1 screws)

Remove the two torx screws from the longer sides (T20 S2)

When all screws are removed from the bottom side, the metal cover can be simply lifted up, and the motor is visible

With the help of the 8 mm wrench, remove the bolt from the black plastic gear wheel

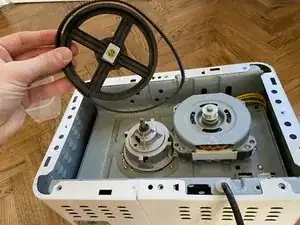

lift the black gear wheel up and the belt drive can be replaced
