Oral-B iO Series 6 Motor Replacement

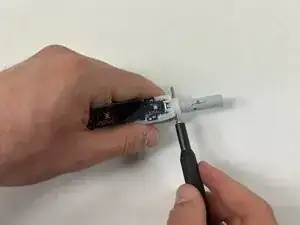

Carefully use an opening tool to pry the bottom cap loose.

Carefully detach the toothbrush head by pulling it off.

Carefully remove the metal casing that holds the head and body together.

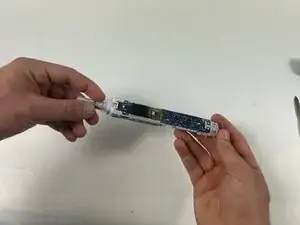

Carefully push the internal mechanisms out through the opening left by the removed bottom cap.

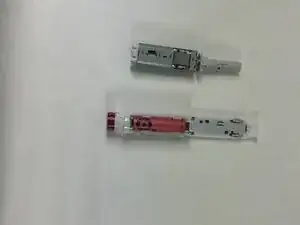

Flip the internal components to access the other side.

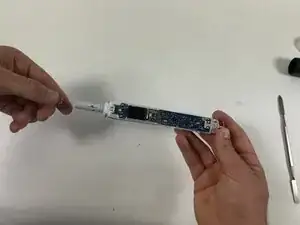

Apply gentle pressure to the clear plastic component and pull upward from the area where the head was previously attached.

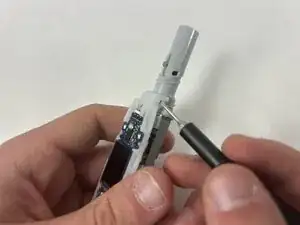

Using a slender tool, gently push the pin through.

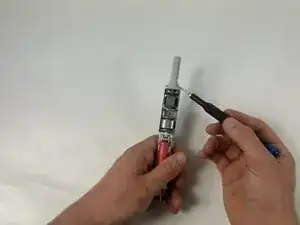

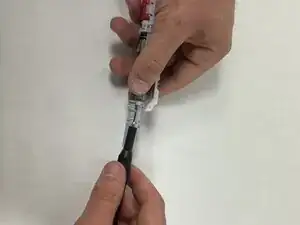

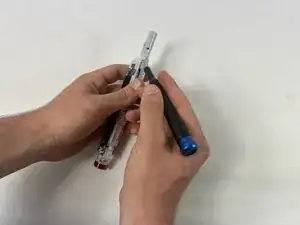

Remove the two screws positioned on either side of the plastic casing.

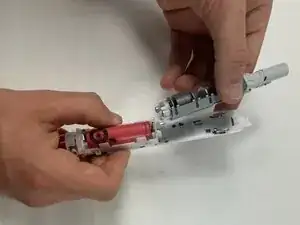

Carefully unclip the motor from the battery compartment to detach it.
