Oral-B Vitality Battery Replacement

Written By: Miles Gunty
  • Comments: 22
Oral-B Vitality Battery Replacement

Difficulty

Difficult

Steps

8

Time Required

45 minutes

Introduction

Electric toothbrushes are powered by a rechargeable battery, that enables the reciprocating brushing motion of the bristles. If your electric toothbrush loses power quickly or doesn't hold charge, most likely the rechargeable battery needs to be replaced.

  1. Va2LEc6dOLVXtL5A
    Va2LEc6dOLVXtL5A
    mkasTtY2V6Ku5qOp
    OwFOREqQlKCjSf6c

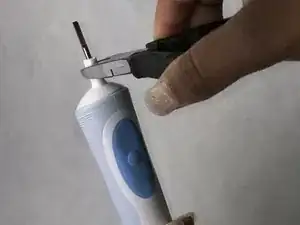

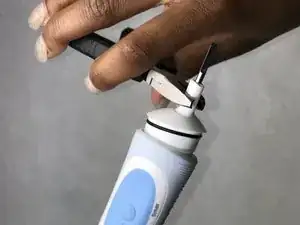

    • Pull off head, and use pliers to remove the white cap. Pull out the circuit core.

    Ruotare per estrarre

    sergio_storato -

    You can use the hole in the bottom of the charging base (underside) that the top fits into and catches. Just twist gentilly back and forth until it loosens, then pull up with your fingers or pliers. Note, this is not like the Braun sonic care where the bottom comes off… should Have looked at the guides first as a I cracked the bottom trying to twist off the bottom like that brush.

    Aaron Giesick -

    Die weiße Kappe kann nicht einfach nur abgezogen werden. Sie muss nach links gedreht werden!

    Freubert -

    I saw on a Youtube video you can use the center hole of the charging base instead of pliers. It fits perfectly on mine.

    George Tedrick -

    Don't grab it with pliers--you will break off the narrow retainer stub. Instead use a thin blade to pry up an edge of the cap, then insert a wide flat blade to pry up the core out of the handle. Plier could be used for pulling but not for twisting. This also works for the Dentiguard version from Aldis.

    Kiev Kenny -

    I don't believe it opens like this. Pulling on the top thing like on the picture did break mine. It's alright though because I kind of knew while I was pulling and I kept on pulling knowing it would break any second. But if you need yours, you better look for some other instruction. Would be nice to update this one as well.

    Wolfgang -

  2. aIkKNTK2LDTKghTl
    aIkKNTK2LDTKghTl
    B4ljHAYKPdaSSywJ
    SZJMUQFknOdICEhT

    • Inspect four pads with green circles (Picture #1), they should be fully covered in solder.

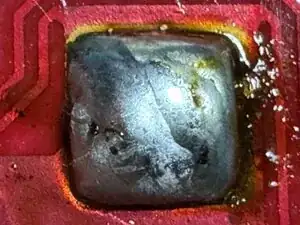

    • Picture #2 shows the center pad missing some solder and not making a good connection.

    • Picture #3 shows repaired solder pad. Test toothbrush battery and motor operation without toothbrush head. If toothbrush is now working, there may be no need to replace the battery - if battery is providing between 1.2 and 1.5 volts and motor is actuated by button presses, stop here and reassemble the toothbrush.

    • If battery voltage is less than 1.2 volts, consider testing motor operation and button presses with two tests; using a AA battery and a pair of wire leads touch one end of leads to battery ends and the other wire ends to: A) left board pads (to test motor leads) and then B) to right board pads (to test battery leads, center pin is positive).

    • If motor doesn't start after Step 2 troubleshooting, continue to Step 3.

  3. D1MIjxDx4OZwCWEm
    D1MIjxDx4OZwCWEm
    TmE3ynbo5wC2kpIt

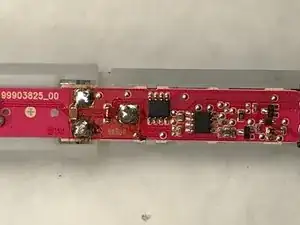

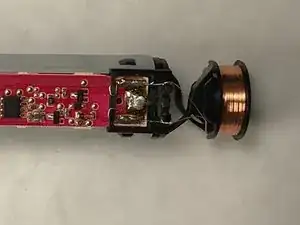

    • De-solder in these four (4) locations.

    • The two (2) motor connections

    • The Positive (+) side of the battery

    • The Negative (-) side of the battery

    I am hoping the author of his guide receives theses comments. I have a Braun brush with dud battery, and am hoping to replace. I am afraid it is not at all clear from the photographs which are the points that need de-soldering. Thanks for any help.

    Peter Bull -

    Having now noticed and browsed the guide history, I see that there were indicators for where to desolder (on one photo only). I can’t understand why these clarifying marks were then removed from the final draft?!?!?!

    Peter Bull -

    IFixit technical team advised us to remove the indicators on the photo before we could publish it .

    Nicole Antoine -

    How do I contact the technical team to complain about their censoring of indicators. Bonkers!

    Unless you are extremely skilled at soldering I advise against attempting to do this battery replacement. I had two brushes with rapidly discharging batteries. After the first one failed to work with replacement battery, I tried on the second, only to discover that, by the time the solder had heated enough to liquify and remove, the fine circuits on the circuit board had fried and the brush was useless. (And I have done my fair share of soldering)

    Peter Bull -

  4. NxnTfOasiW6siFdP
    NxnTfOasiW6siFdP
    1BTBOqHS6BbrGE4D

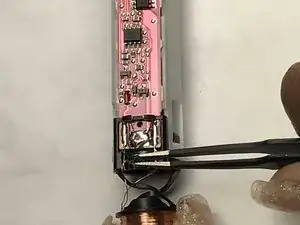

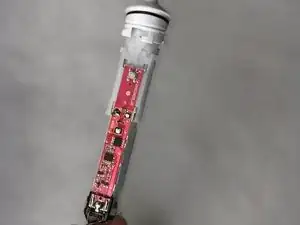

    • De-Solder lower battery connection terminal. Bend back battery terminal to clear circuit board.

  5. SJnhEdSFgWZMg6nU

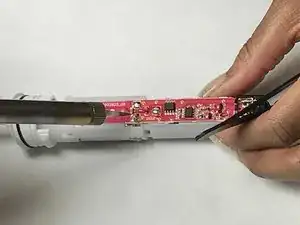

    • De-Solder the three (3) upper terminals from the circuit board.

  6. BxQaAUeuHDhGklUN

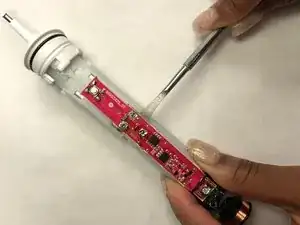

    • Use plastic prying tools to carefully pry off the circuit board. (Utilize metal spedger as a last resort)

    • There is a white tab that goes through the board, be careful when removing the circuit board.

  7. OCpaULHXEX2X3bqp
    OCpaULHXEX2X3bqp
    WfYsclSQDDdBAXDA

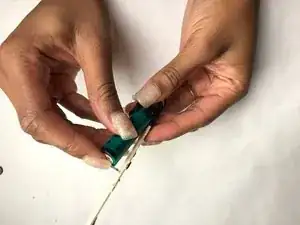

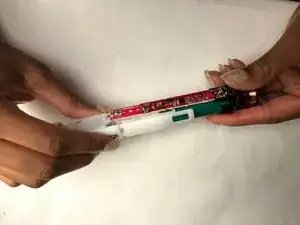

    • Pull the circuit board and battery assembly out. Then proceed to remove the battery from the circuit board

  8. 1pnCQ5tGNjnF2SAm

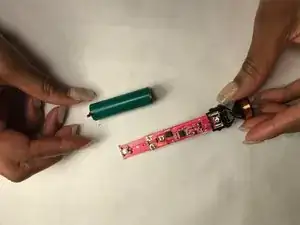

    • When re-installing battery, remember to bend down lower terminal. And the negative (-) terminal is closest to the copper wires

    • Ensure you recharge the toothbrush after the repair. Even if the replacement battery is already fully charged, the toothbrush will fail to power on if you don’t recharge the toothbrush.

    Der neue Akku sollte entweder passende Lötfahnen haben oder die alten sollten an den neuen angelötet werden.

    Tina Fabritius -

    Lötfahnen kann man nicht anlöten, das geht nur im Werk.

    VauWeh -

Conclusion

To reassemble your device, follow these instructions in reverse order. Remember to apply just enough solder to re-attach the terminals.
