OnePlus Nord N20 5G Screen Replacement

Written By: Mayson Solis
  • Comments: 3
OnePlus Nord N20 5G Screen Replacement

Difficulty

Difficult

Steps

10

Time Required

1 - 2 hours

Introduction

Is your OnePlus Nord N20 5G (Model Number - CPH2459) screen damaged or malfunctioning? This guide will help you with a screen replacement.

  1. anXaSLATtEHZpVMr

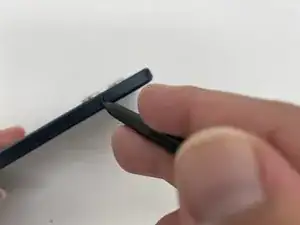

    • Insert the SIM ejection tool or a spudger in the small hole next to the SIM tray.

    • Push it gently until the tray pops out.

    • Remove the SIM card tray by sliding it outwards.

  2. YhRmYEQcPl4VwZDt
    YhRmYEQcPl4VwZDt
    lTcaPHvXOmiJXjOP

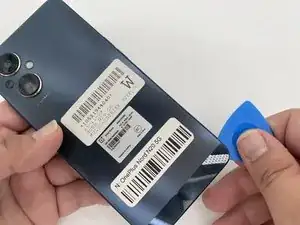

    • Heat the iOpener in a microwave for about 30 seconds. If the iOpener isn’t hot enough, reheat it for another 10-30 seconds.

    • Apply the heated iOpener on the backside of the phone for a minute to loosen the adhesive.

    • Use the iFixit opening tool and slide it along the edges of the phone to pry the back panel off.

  3. 5Ry1KNoSOl2utQ2x

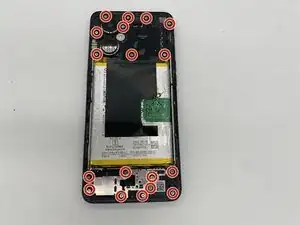

    • Remove the 18 3.9 mm screws using a Phillips #0 screwdriver.

  4. PZxnTQtQo4xKsI15
    PZxnTQtQo4xKsI15
    kYGNLeVPiAWFVlrq

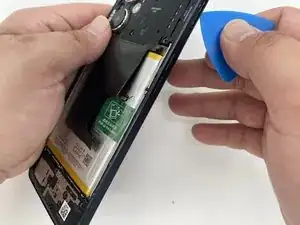

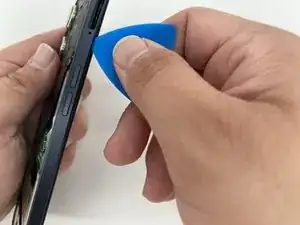

    • Take the iFixit opening tool and run it along the edges.

    • Separate the back housing from the frame of the screen.

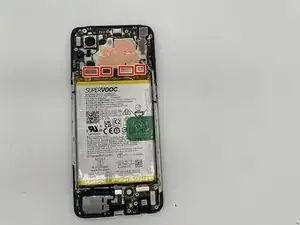

  5. heQryoOGGEv4wWAt
    heQryoOGGEv4wWAt
    XCiOUAhrCMVSymEm

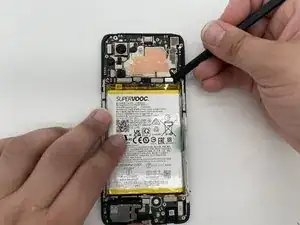

    • Disconnect the brackets attached to the motherboard using a spudger.

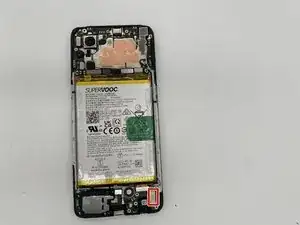

  6. NHnB1ZJ5SUDsGINM

    • Disconnect the bracket attached to the daughterboard using a spudger.

    You changed models! This one has a single camera. The one I have is like the one you started with. It has a ribbon cable going in to somewhere under that mother board. How do I get to that connection? Nothing else comes apart at this point.

    Chris Cooney -

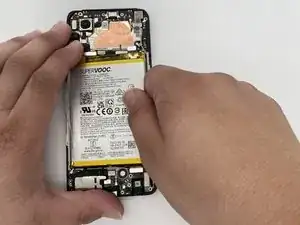

  7. WZjN15shnWTnx5or

    • Remove the battery.

    • This step is to ensure the heat from the iOpener does not damage the phone's battery.

  8. L1qIpgyLqbmxoSVh

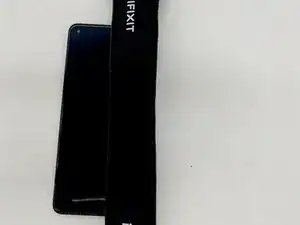

    • Heat up an iOpener for 30 seconds.

    • Place it on the front of the screen until you are able to slide a Jimmy in between the screen and the phone.

    • Make sure you do not overheat the screen or camera as it might damage the camera lens.

  9. D1EfwCyuwr2vEAt4

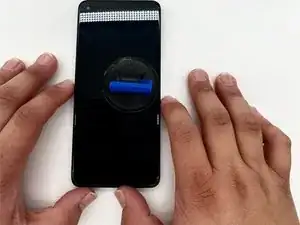

    • Attach a suction handle to the screen.

    • Avoid being too rough to prevent more damage.

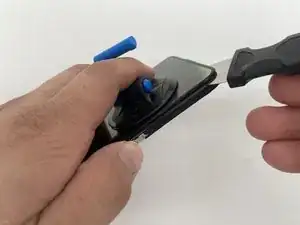

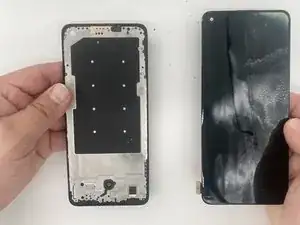

  10. FH2ygHPOUlpVbrbs
    FH2ygHPOUlpVbrbs
    TjcJlwO2twuHiBVK

    • Use a suction tool to pull the screen while prying the screen with a Jimmy.

    • The glue around the edges may need to be warmed up multiple times.

Conclusion

To reassemble your device, follow these instructions in reverse order.
