Olympus D590 Motherboard Replacement

Written By: Sara
  • Comments: 0
Olympus D590 Motherboard Replacement

Difficulty

Moderate

Steps

10

Time Required

15 - 20 minutes

Introduction

Step-by-step Instruction Guide

Olympus D590 Logic Board Replacement

  1. tLRBDCXKkV3QFXxf

    • Remove five baseplate screws using a Phillips #00 screwdriver.

  2. xviXHOyDMDQNLxqv

    • Press and slide the battery cover retainer clip to the left. Use tweezers to lift the battery cover away.

  3. HbI3KlmFdDtXiqWg

    • Remove the single screw from the battery housing using a Phillips #00 screwdriver.

  4. w6ZLPFeFtDTHba5h

    • Using tweezers, lift the rubber plate to expose the ports.

  5. lWpwRWBLQLbGXt4r

    • Remove two screws from the ports using a Phillips #00 screwdriver.

  6. TrqgK4nV5sZBYJOi

    • Use a spudger to pry the faceplate away from the rest of the camera.

  7. cCr4mQVeNcIX6Qbl

    • To avoid disconnection of the connector line to the motherboard, use caution when pulling faceplate away from camera case.

    • Damage to the connector line will prevent the on/off power switch's operational function.

  8. DUugbvk5iiA1Z6h2

    • Remove four screws holding the motherboard to the internal housing component using a Phillips #1 screwdriver.

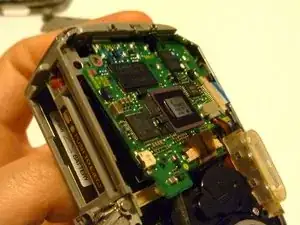

  9. IdDWIH2BMOIaAs4Q

    • Be cautious of the wires attached to the motherboard.

    • Remove the motherboard from the internal housing component.

    • Do not completely lift the motherboard out with the wiring connected. The wires must be disconnected before proceeding. The next step will demonstrate disconnection process.

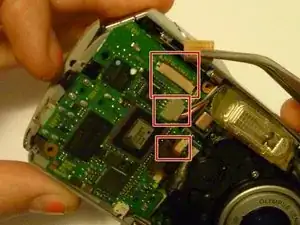

  10. QRPNt1wjx6YPFEVR
    QRPNt1wjx6YPFEVR
    cVykpxcKZqiunVhw
    fKYSGf5yCrjwUsYX

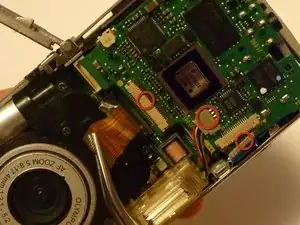

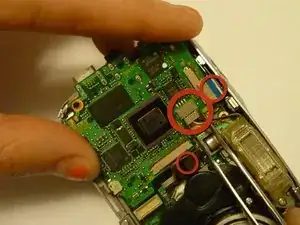

    • Use rounded tweezers to disconnect the three wiring strips from the motherboard.

    • Using sharp tweezers may tear wiring tape and wires.

    • Use gentle force when wiggling or pulling wiring tape and wires to disconnect from the motherboard.

Conclusion

To reassemble your device, follow these instructions in reverse order.
