Nintendo Switch 2 Chip ID

Written By: Shahram Mokhtari
Published: 10/06/25
  • Comments: 3

Nintendo Switch 2 Chip ID

Published: 10/06/25

Teardown

Introduction

This is the chip ID of the Nintendo Switch 2's main board.

Check out our Nintendo Switch 2 teardown for more details.

Special thanks to our community member Chunglin Chin for contributing to this!

  1. FhpQ3QhNnuvepCGT
    FhpQ3QhNnuvepCGT
    rBmFWnlrr1DXBxdN

    • NVIDIA GMLX30-A1 applications processor w/ GPU

    • Micron MT62F768M64D4EK-026 WT:B 6 GB LPDDR5 SDRAM memory

    • Infineon CP10359AT USB type-C controller

    • Likely Nintendo B2423 Game Card reader controller

    • Genesys Logic GL852G quad-port USB 2.0 hub

    • Analog Devices MAX17050 battery fuel gauge

    • Diodes Incorporated PI2SSD3212NCE 14-bit 2:1 SSD switch

  2. hvYCetYil5KcrfeC

    • Texas Instruments TPS2121 dual-input, single-output power multiplexer

    • Likely Analog Devices MAX18000 boost converter

    • Texas Instruments TPS62825 2 A step-down converter

    • Texas Instruments TPS25200 5 V eFuse

    • Texas Instruments TPS2553 USB power switch

    • Texas Instruments TS5A23166 dual SPST analog switch

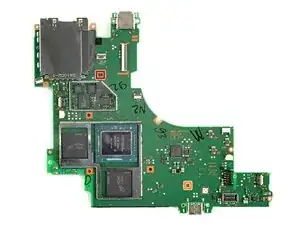

  3. TsbKClLiXtIWY5HE

    • STMicroelectronics accelerometer & gyroscope

    • Texas Instruments TMP451 temperature sensor

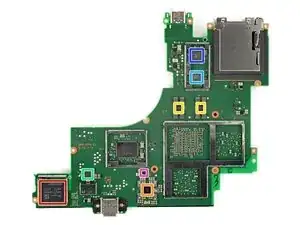

  4. a5Gg6tgTDH6WiO2p
    a5Gg6tgTDH6WiO2p

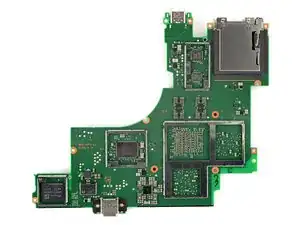

    jgEllWlhWtKIaKPC

    • SK hynix HN8T15DEHKX075 256 GB NAND flash w/ UFS 3.1 memory controller

    • Analog Devices MAX77851SAWJ power management

    • Renesas DA9092 power management

    • Analog Devices MAX77986 single cell Li+ battery charger

    • Intelligo Technology IG2200 audio/voice processor

    • Realtek ALC5658 audio codec

    • Analog Devices MAX77801 buck-boost converter

  5. JNedCajYGcLVJnAo

    • Rohm BD8316GWL step-up & inverted DC-DC converter

    • Nisshinbo Micro Devices R1214Z dual-channel step-up white LED driver

    • Likely Analog Devices MAX18000 boost converter

    • Texas Instruments TPS2553 USB power switch

  6. jAyGZy5KRjjXPq3l

    • MediaTek MT3681AEN WiFi & Bluetooth controller

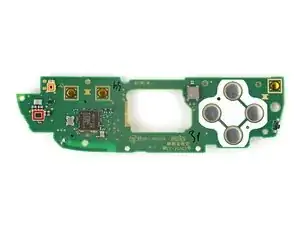

  7. PnbWUUvqqqRbFSdm
    PnbWUUvqqqRbFSdm
    cqPRTmVp3WSloZcM

    • Texas Instruments BQ25618 1.5 A buck battery charger

    • Likely Analog Devices MAX3864xA buck converter

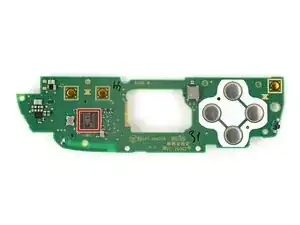

  8. oWeFILHtXAjy3qaK

    • MediaTek MT3689BCA Bluetooth SoC

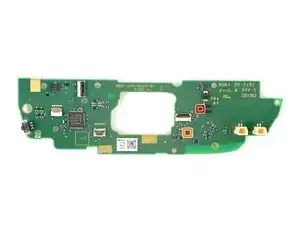

  9. Lgg4XwuIC2ySmoO2
    Lgg4XwuIC2ySmoO2
    PkKjsECEcGZKYNTv

    • Analog Devices MAX98388 class-D audio amplifier

    • Texas Instruments TPS2553 USB power switch

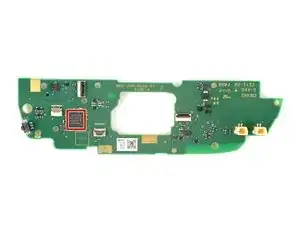

  10. umRXEyiJKpN1tt1D

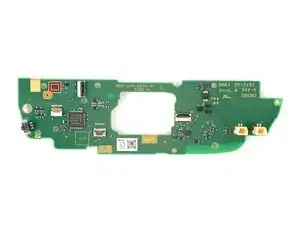

  11. OZsnq5NgtynIORkj

    • TDK-InvenSense ICM-42607-PN 6-axis accelerometer & gyroscope

    • AKM Semiconductor AK09919C 3-axis electronic compass
