Ninja Coffee Bar® Single-Serve System Water Heater Replacement

Written By: CJ Berg
  • Comments: 2
Ninja Coffee Bar® Single-Serve System Water Heater Replacement

Difficulty

Moderate

Steps

10

Time Required

20 minutes

Introduction

If your normally piping hot cup of coffee is coming out at room temperature then the water heater may be to blame. This replacement involves removing a number of small screws so it may be a good idea to have the iFixit magnet pad nearby. Follow this guide to replace your device’s water heater and restore heat to your Ninja Coffee Bar.

  1. GeJinTkJr1LP5A1V
    GeJinTkJr1LP5A1V
    1KxAbZmZ5AJ2fSFe

    • Remove the eight 6 mm screws using the Phillips #1 screwdriver.

    • Remove the bottom cover.

    My Ninja has T10 Security-head screws. Several are recessed quite deep in the bottom cover. I found a set of 60mm long security torx bits on Amazon for around $12 The extended length worked great for the deep recessed screws.

    Mike Stroven -

  2. DUJTiRDYcUGkGdBa

    • Remove the three 6 mm screws with the Phillips #1 screwdriver.

    • Remove the plastic cover.

  3. WigCruGibwOMkLFW

    • Detach the valve tubes from the valve by squeezing the pins and pulling them away from the valve.

  4. WdNivXHtWSQ6EdyJ

    • Detach the valve tubes from the device by pinching the pins and sliding the valve tubes off.

  5. HDgH5PYCSYIpBirp
    HDgH5PYCSYIpBirp
    J1HTSFSEICwVJJPa

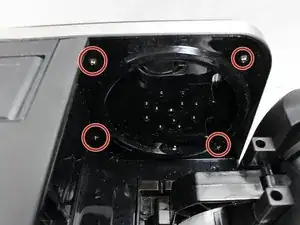

    • Unscrew the four 6mm #1 Phillips head screws from the underside of the basket area.

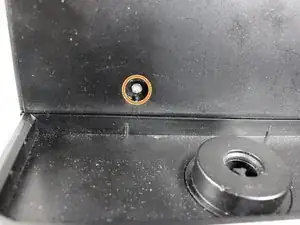

    • Remove the single 6mm #1 Phillips-head screw from the side of the unit.

  6. tC4bJFaUKigYeSad
    tC4bJFaUKigYeSad
    JCxpkCyHNwD4QgfJ

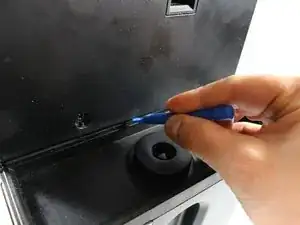

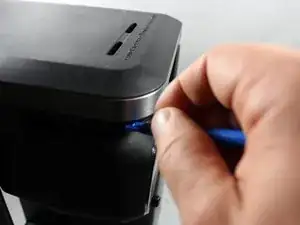

    • Slowly pry the upper cover away from the unit on top of the brew basket, and near the base of the water reservoir along the side of the upper cover.

  7. WpEusHTLUDcDVtg1

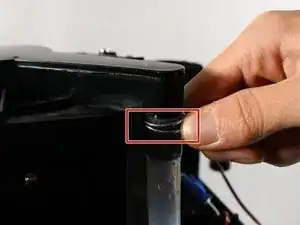

    • Separate hose from upper nozzle by squeezing the clamp and pulling the hose down slightly.

  8. RHQpygAFSdPFaRAX
    RHQpygAFSdPFaRAX
    LYktKLiQVcAOFtBp

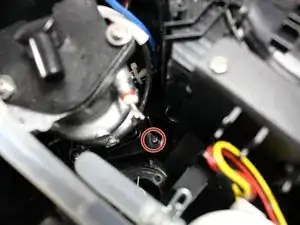

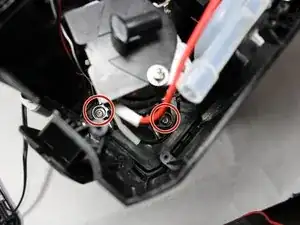

    • Using a #1 Phillips head screwdriver with an extension, remove three 6mm screws holding the heater to the unit.

  9. cIGYoqHYODbi6Ioa

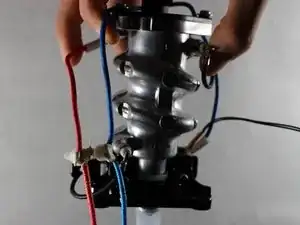

    • Remove heater from unit.

  10. XMEmXXQKeVvWCyuI
    XMEmXXQKeVvWCyuI
    WGkfw3MNhZrKRoXc

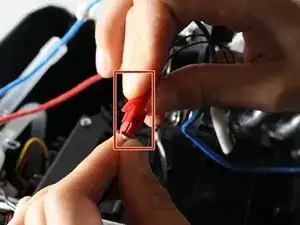

    • Squeeze clip and separate signal wiring.

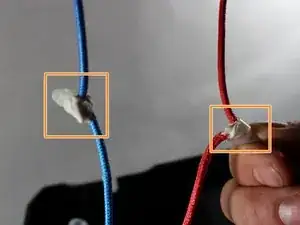

    • Using wire stripper/crimping tool, uncrimp wiring connectors

    • Wiring connectors are sealed together making them difficult to disconnect. Cutting and rewiring should be considered.

Conclusion

To reassemble your device, follow these instructions in reverse order.
