Introduction
The water pump facilitates the motion of water from the reservoir to the drip area. This guide shows how to replace it.
Tools
-

                  -
            Unscrew and remove the heating plate layer. This will expose the internal workings of the machine.

-

-

                  -
            Locate the water heating element in the interior of your coffee maker.
-
            Unscrew the two indicated J1S1 screws at the base of the water heating element.

-

-

                  -
            Unscrew and remove the remaining J1S1 screws that secure the water heating element to the interior of the device.

-

-

                  -
            Grasp and remove the clamp securing the tube that feeds into the base of the water heating element.
-
            Detach the tube from the water heating element.

-

-

                  -
            Locate the coated wire that feeds into the side of the water heating element. Remove this wire.

-

-

                  -
            Locate the two wires leading out from the water heating element that feed into crimp connectors.
-
            Using side cutters, sever these wires near the crimp connectors.
-
            Use the side cutters to cut the remaining wires that feed into the crimp connectors from the coffee machine.

-

-

                  -
            Squeeze and remove the clamp that secures the main tube feeding into the water heating element. Remove that tube.
-
            Remove the water heating element.

-

-

                  -
            Using wire strippers, strip the cut wires from your coffee machine near their cut ends to expose 2 cm of metal conductor from each.
-
            Use a similar procedure to strip the wires from your replacement heating element. Using wire strippers, expose 2 cm of metal conductor from the ends of the wires.

-

-

                  -
            Prepare two crimp connectors by filling them with dielectric grease.
-
            Use a crimp connector to connect a stripped end of the wire leading from the replacement heating element to the stripped end of the corresponding wire from the coffee maker.
-
            Using a second crimp connector, repeat for the remaining pair of stripped wires.
-
            Using the appropriate crimping tool, crimp the connectors.

-

-

                  -

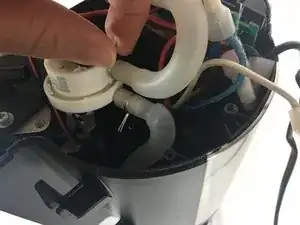

            Locate the water pump in the interior of your device.
-

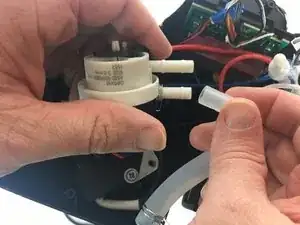

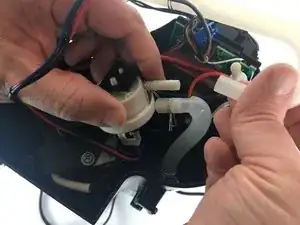

            Squeeze and remove the clamps securing the tubes that are connected to the side of the water pump.

-

-

                  -

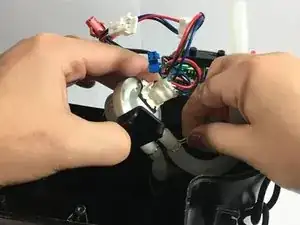

            Trace the three wires leading out of the water pump until you find the connector linking them to the wires in your device.
-

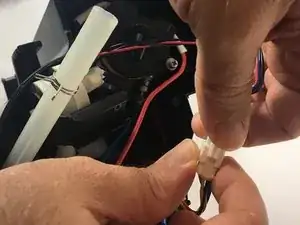

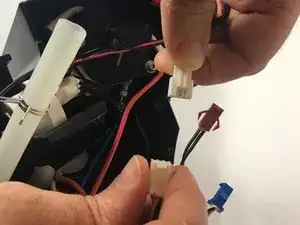

            Detach the connector and remove the water pump.

-

To reassemble your device, follow these instructions in reverse order.
