Ninja Coffee Bar CF080 Heated Plate Replacement

Written By: Elizabeth Nguyen
  • Comments: 1
Ninja Coffee Bar CF080 Heated Plate Replacement

Difficulty

Easy

Steps

7

Time Required

No estimate

Introduction

This guide will show how to remove the heated plate from the coffee machine.

  1. RqDtNcfJcLSow6pX

    • Face the machine bottom towards you.

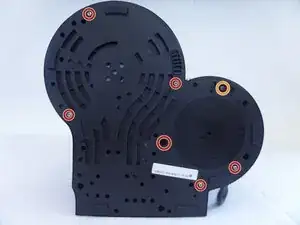

  2. vfirEvmoalmYhTqD
    vfirEvmoalmYhTqD
    PkMETDqeVklJKqFk

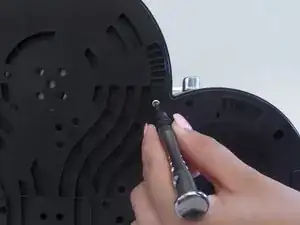

    • Unscrew six 0.6cm screws by holding the bottom board with Torx #10 screwdriver to remove the board.

    • Unscrew one 0.6 cm screw with PH1 screwdriver to remove the board.

  3. tAxCTcFnETxAPXXR
    tAxCTcFnETxAPXXR
    G4HLYlXm2BZC2V43
    EUL2NcVTLJyeUFKW

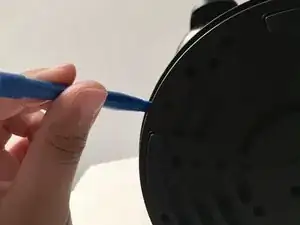

    • With moderate force remove and place the "plastic opening tool" between the divide in order to remove the bottom board.

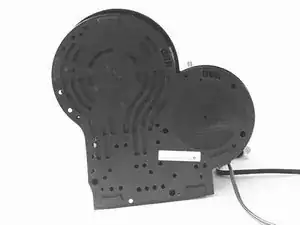

  4. BgHj4vsiGaS5D6Dd
    BgHj4vsiGaS5D6Dd
    ruvyZrSuBnHDgLGx
    FrSYjbEvTVQIUoeE

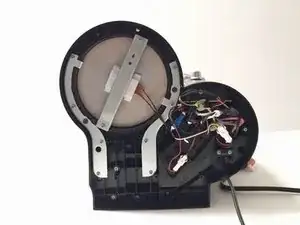

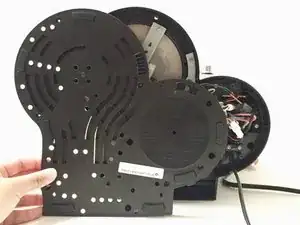

    • Remove the bottom board with moderate force.

  5. WjSnXhGtYaYvSboA

    • Unscrew eight 0.6cm sized screws with Phillips #1 screwdriver, holding the silver secures on the sides of the heated plate.

    • Four screws on each side, two silver secures to remove the securers, located on the sliver bar holding the heated plate (one on each end).

  6. FBWqEMN1FwrygoLx

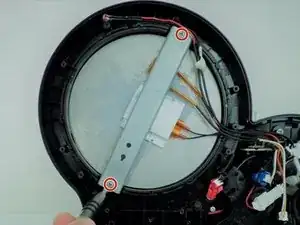

    • Unscrew two 0.6cm sized screws Phillips #1 screwdriver.

    • The silver bar will fall off once screws are removed.

  7. PkM5JSJlMbSR1e6R
    PkM5JSJlMbSR1e6R
    vaFjLfNPNe5OVedK

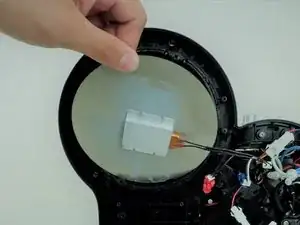

    • Remove the heated plate from the machine with easy glide.

Conclusion

To reassemble your device, follow these instructions in reverse order.
