Nextbook NX008HD8G Battery Replacement

Written By: Philip Gai
  • Comments: 5
Nextbook NX008HD8G Battery Replacement

Difficulty

Difficult

Steps

10

Time Required

20 - 25 minutes

Introduction

Use this guide to replace a malfunctioning battery. This replacement guide requires a Soldering Iron, it would be very helpful to heat the iron up before starting this guide, this process can take 3-4 minutes. You should refer to iFixit's soldering guide to help with the desoldering/soldering process.

  1. dKJleWvCf6MSh4iC
    dKJleWvCf6MSh4iC
    kQE5wXHYL1NgB3TY

    • Using your finger, open the plastic tab to the right of the rear-facing camera.

    • Wedge your fingernail in between the back panel and the plastic tab and pull the plastic tab towards your body.

    jhtrtih0rthk[riiyih0riyihtri0okhi00rtiyro-yiy0iy[oytrkoih0it

    9turiyrithjhtohtitujhtprit0ryryt9it[thohotjhri0-trhjirt-nm otjhphyuhjr0i trirt-t

    jtiophkr

    Aaron carlin -

  2. wNawZm1R6SI1r3LG
    wNawZm1R6SI1r3LG
    ucKPZtNeuYS4LsNG
    aYEKvgyYDxRaHGiS

    • Using your finger, remove the SD card by pressing down on top of it (toward the bottom of the device) until you hear a clicking sound.

    • Once the card pops out, use your finger to pull the card completely out of the SD card slot.

  3. oWnhUI5demW2SdmJ
    oWnhUI5demW2SdmJ
    kHEVlLRB5sDNycfY
    3JH2eUecG34T2CTj

    • Remove the 5 mm screw using the Phillips PH00 bit in the iFixit metal Screwdriver.

  4. eCEflQiNUArD1CLl
    eCEflQiNUArD1CLl
    ewqXqDLqYQ5YV2SE
    C3QTCCu4muMCJbDE

    • Use the plastic opening tool to separate the back panel by carefully sliding the narrow end of the tool between the front glass and back panel.

    • Use a second plastic opening tool to help pry the front glass from the back panel.

    • You will hear some cracking sounds when separating the front glass from the back panel. That is okay! That is the back panel latches releasing the front glass.

  5. LMqJ3iMB4XPZvUR3
    LMqJ3iMB4XPZvUR3
    LlfK3dVdPnqCTrAX

    • Use your hands to completely separate the rest of the front glass from the back panel.

    • Do not to pull the device apart with too much force. If you do, you may break or bend the back panel.

  6. DLAAkmHTZM6VPN4Q
    DLAAkmHTZM6VPN4Q
    hVkHVhprEemKYPav
    SUEeGyytFiVTWDsQ

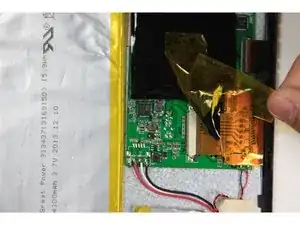

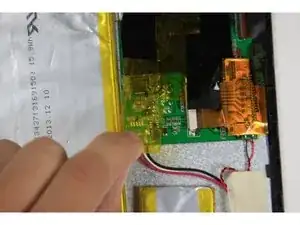

    • Remove yellow tape with a black edge that covers the red, white and black wires.

    • The yellow tape with a black edge is safe to remove completely.

  7. LFZXpwsNIJtJNYnu

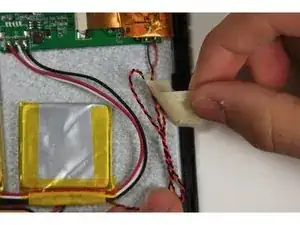

    • Remove the white masking tape covering the red white and black wires.

  8. RKjtqcMLDFMNBlSp

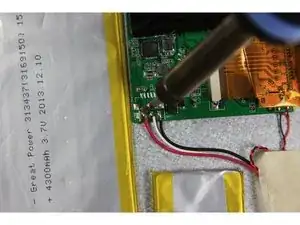

    • Desolder the red, white and black wires on the left side of the motherboard.

  9. OvYWgPskRSqPVyUT

    • Use the flat end of the spudger to carefully separate the smaller, silver battery square from the digitizer.

    • The battery is very malleable, do not try to take it all off at once.

    Donde la encuentro

    Lauraelena -

  10. DbUapFB2GiJJQCyX
    DbUapFB2GiJJQCyX
    aRViWRiySQ1jrl5e
    nAvVwawHh5HYAtya

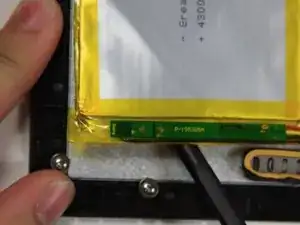

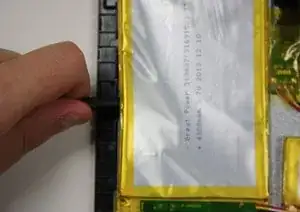

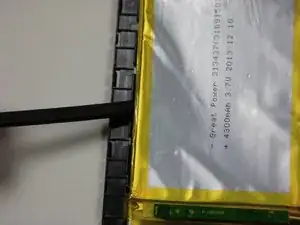

    • Use the flat end of the spudger to carefully separate the large battery from the digitizer.

    • The battery is very malleable, do not try to take it all off at once.

Conclusion

To reassemble your device, follow these instructions in reverse order.
