New Speed 26-inch Electric Bike Throttle Replacement

Written By: Ryan Arnold
  • Comments: 2
New Speed 26-inch Electric Bike Throttle Replacement

Difficulty

Easy

Steps

7

Time Required

20 - 30 minutes

Introduction

The throttle on an electric bike is important for proper function. When the throttle mode is engaged, the motor provides power, propelling the bike forward, similarly to a motorcycle or electric scooter. Without a working throttle, an electric bike loses important functionality, becoming little more than a regular, pedal-operated bike.

This guide will walk you through the steps to replace the throttle on a 26-inch New Speed electric bike. Make sure that your bike is off and not receiving power before starting.

  1. r6QxOty1WP6IVPUN

    • Remove the 3/32" Allen screw from the top of the throttle.

    • When removing the screw, make sure the wrench is well seated to avoid damaging the screw.

    • Make sure that your bike's power is turned off before beginning to disassemble it.

  2. IHVNTDCpI3yl4Wv6

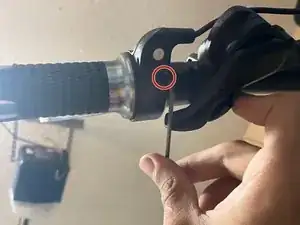

    • Remove the 5/64" Allen screw from the underside of the throttle.

  3. vfcqTJSFBIRFdVMo

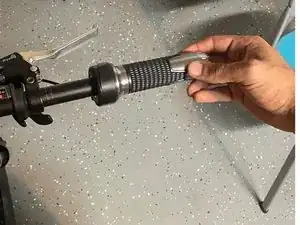

    • Slide the throttle off of the handlebar.

    • Be careful when removing the throttle. Taking it off too quickly could result in damage to the wiring.

  4. KXqncehLkauoFnLt

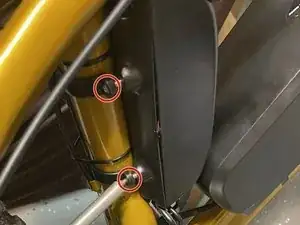

    • Remove the two 2mm Phillips screws from the back of the control box.

    • Repeat this process for the other side of the control box. 4 screws will be removed in total.

  5. YLGFTRNmllRIivDI

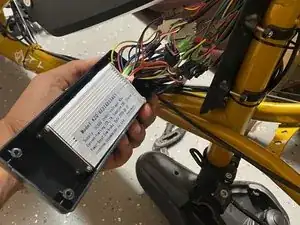

    • Open the control box.

  6. 3uQqY5mR5VfT4hEp
    3uQqY5mR5VfT4hEp
    W1UBAGsWQUlH4lTU

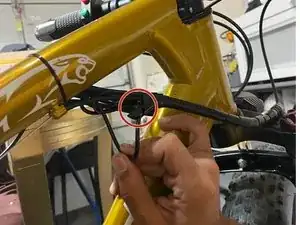

    • Unwrap the cable lining surrounding the throttle cable.

    • Track the throttle cable to the control box.

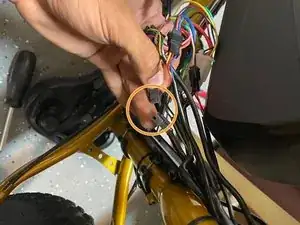

    • Disconnect the JST-SM connector from the main controller.

    • Take caution while handling these wires. They can be easily damaged.

  7. N5sgBEQiZPLoI2bm
    N5sgBEQiZPLoI2bm
    exKOe2QNvfuBdolM

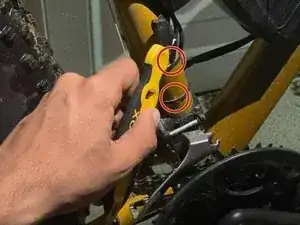

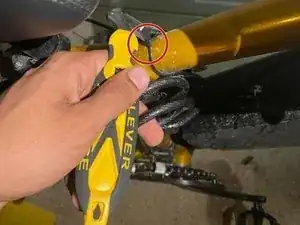

    • Cut the zip ties found along the frame of the bike.

    • Remove the throttle and its wires from the frame of the bike.

    • Be careful not to cut too close to the wires, as you could risk damaging them or hurting yourself.

Conclusion

To reassemble your device, follow the steps in reverse order.
