Motorola i90c speaker replacement

Written By: Jorge
  • Comments: 0
Motorola i90c speaker replacement

Difficulty

Easy

Steps

7

Time Required

5 - 10 minutes

Introduction

Today we are going to repair the speaker system in the phone. This may be due to simple wire disconnections and may require soldering or a replacement of the system.

  1. B3sbjw4XfDPB3fU4
    B3sbjw4XfDPB3fU4
    soyvh4SFRYTJJmbX
    kQokZdYQqTCIV3sO

    • Slide the notch downward while pulling the back cover off to remove it.

  2. FYQZGnC5CVIoEHJY
    FYQZGnC5CVIoEHJY
    5tOoqOlfKhhmNMCJ
    axvZcFdMFsZUOPlQ

    • Use your fingers to push the battery upward from the bottom.

    • Lift upwards to remove the battery.

  3. hwGeEUCq1SWp1PFO
    hwGeEUCq1SWp1PFO
    AMsWkdq2vRbA1xhc

    • Unscrew the antenna in a counter-clockwise fashion.

    • Remove the aluminum cover.

  4. xmdGvJIgVFcl1lHQ
    xmdGvJIgVFcl1lHQ
    wVT6HHywnIt1QdhM
    eXmIjxYrHeUWNrHH

    • Unscrew the 3 screws shown.

    • Lift the right part of the Nextel logo

    • Remove the screw underneath.

  5. 6Vs6TlIDFHlG3mA4
    6Vs6TlIDFHlG3mA4
    CkbgjRhIABOuONSR

    • Forcing the cover off could damage the ribbon cable, so be careful when doing so.

    • Gently lift the back cover off.

  6. blfeRuswFEGVsVQN
    blfeRuswFEGVsVQN
    3gdk3mlOdkvJbx4Y
    p1rJLQsNwZndaV5g

    • Find the connection between the headphone jack and logic board.

    • Begin separating the two pieces, slowly and carefully.

  7. DhjVDjmiYAqThVCH
    DhjVDjmiYAqThVCH
    x4tRT2q4G4nTcHeD
    MssJRNhXlVG4lAvf

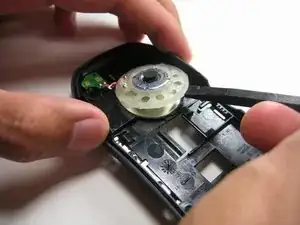

    • Use the prying tools to wedge out the circular part of the speaker system.

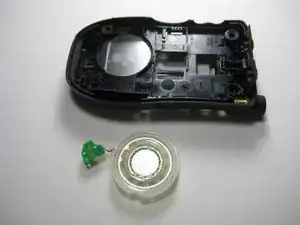

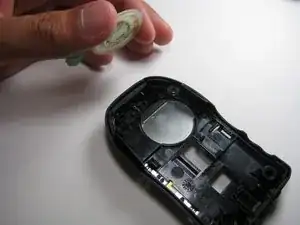

    • Carefully pull out the wiring and circuit board attached to the speaker system using a prying tool or tweezers.

Conclusion

To reassemble your device, follow these instructions in reverse order.
