Motorola Razr V3m Antenna Replacement

Written By: Daniel Simcock
  • Comments: 0
Motorola Razr V3m Antenna Replacement

Difficulty

Moderate

Steps

8

Time Required

No estimate

Introduction

  1. vLpT6RR1A3LeBCHQ
    vLpT6RR1A3LeBCHQ
    crhFjr66hKANBkBC

    • Press the release button located on the upper edge of the battery cover. At the same time, lift the battery cover away from the phone.

  2. 2aBpPM2RKTdLmW46
    2aBpPM2RKTdLmW46
    U3jD2On1AWXVMloB

    • Push the top edge of the battery and lift away from the phone.

  3. FEYGQVNyGdDiHfyS
    FEYGQVNyGdDiHfyS
    iV3UESEaBuSswH1L

    • Gently pull the SIM Card toward the top of the phone with your finger.

  4. fxds3GTmO1hTS2JT
    fxds3GTmO1hTS2JT
    AKgFOee4gN1JmuQ1

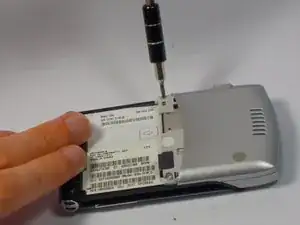

    • Remove the two screws from the back panel with a T6 screwdriver.

  5. fkxGqPLecos2Kjad

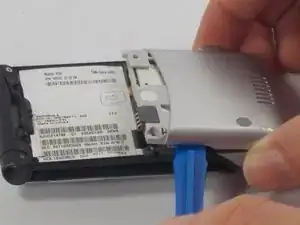

    • Carefully use a plastic opening tool to pry back panel open.

    • The back panel is attached to the phone with a copper ribbon that acts as a hinge.

    • Carefully open out the back panel to the side of the phone corresponding with the hinge.

    • Do not pull back away from phone. It may damage the copper ribbon.

  6. fjSbRsrN1qbflhKk
    fjSbRsrN1qbflhKk
    pABPFaJfMpYJHwER

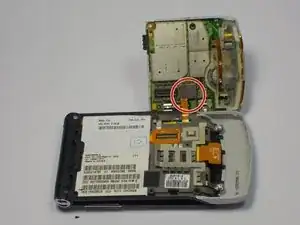

    • Use tweezers to disconnect the copper ribbon from the inside of the back panel.

  7. BWVT2xxaddbdQijw

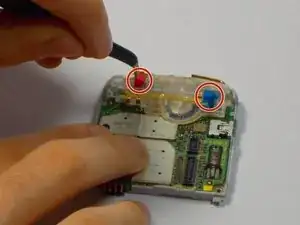

    • Use tweezers to remove the tiny red and blue rubber covers located on the top of the antenna.

  8. yDCHQwqoLsGasYYf
    yDCHQwqoLsGasYYf
    ytXScDxA1DfS2u4q

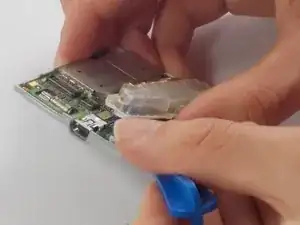

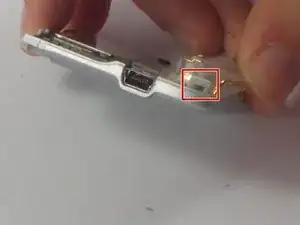

    • Use a plastic opening tool to pry the edge of the antenna away from back panel.

    • The antenna may be fastened with two grey clips on either side. If this is so, unfasten two plastic clips located on the edge of the antenna.

    • Lift antenna away from back panel.

Conclusion

To reassemble your device, follow these instructions in reverse order.
