Motorola RAZR2 v9m SD Card Replacement

Written By: John T Roller
  • Comments: 0
Motorola RAZR2 v9m SD Card Replacement

Difficulty

Easy

Steps

6

Time Required

3 - 5 minutes

Introduction

Use this repair guide to replace an SD card in a Motorola RAZR2 v9m.

  1. sj4GyMwnxLIZSDIe
    sj4GyMwnxLIZSDIe
    giZRVmYrounMewta

    • Push the rear cover toward the hinge of the RAZR2. The panel will slide about 3 mm.

  2. NEmVSWRp1NqZ3h2d
    NEmVSWRp1NqZ3h2d
    h4OcN6ZmRrvFEGgH
    Hc4y2torkwJQUoJi

    • Pinch the top and bottom edges of the panel and pull it away from the RAZR2.

    • The rear panel uses four small hooks to hold it in place. If the panel will not easily pull away, slide the panel more toward the hinge.

  3. LLrJSWWAo2DSV2io
    LLrJSWWAo2DSV2io
    fLEjVIEMZYbJZrf5

    • Gently pull the white plastic tab to lift the battery away from the RAZR2.

    • The white plastic tab is attached to the phone. Only pull it enough to expose the edges of the battery.

  4. iYJTnkrFKPDHXHyK
    iYJTnkrFKPDHXHyK
    i4ZAR2WBKivZaMbn

    • To remove the battery, grasp its edges pull away from the phone.

    • When installing a new battery, be sure the metal contacts on the phone line up with the ones on the battery.

  5. kZeQmd4tdRLJFPNr
    kZeQmd4tdRLJFPNr
    Yu5XPWIUTORdCGhT

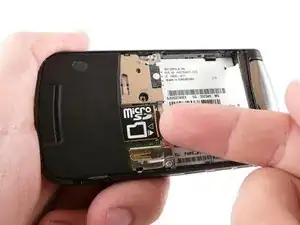

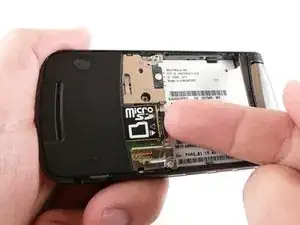

    • Press the exposed portion of the SD card towards the bottom of the phone until you hear a click. The SD card will slide into the phone about 10 mm.

  6. sMhQFgTWyHi13dWR
    sMhQFgTWyHi13dWR
    nNLL6jypZDuT34vx

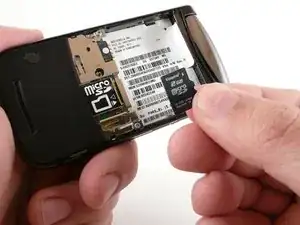

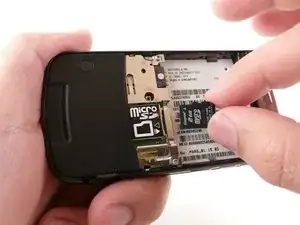

    • Release the SD card. A spring will push it partially out of the phone.

    • Grasp the card by the edges and remove.

    • When installing a new SD card, remember that it must be 2 GB or less.

Conclusion

To reassemble your device, follow these instructions in reverse order.
