Introduction
Use this guide to replace the keypad guard on the front of the phone.
Tools
-

                  -
            Find a flat head or Phillips head screwdriver.
-

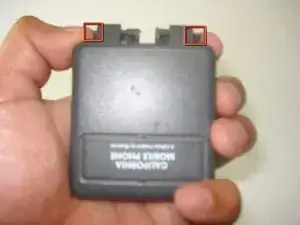

            Insert the screwdriver into the holes in the plastic rod connecting the key pad guard to the rear casing.
-
            Use the screwdriver to push the rods towards each other until they click out of their locked position.

-

-

                  -
            Slide off the antenna guard.
-

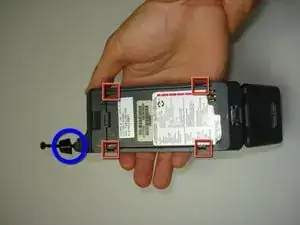

            Locate the four clips on the exterior of the rear casing.
-
            Simultaneously push the clips outward while lifting the rear casing and keyguard away from the front casing.
-
            Remove the old key guard from the rear casing by taking it out of its position.

-

-

                  -
            Locate the circular extensions protruding from the top of your new key guard.
-
            Push inwards on the small tabs on the side of the protrusions until they are no longer sticking out.

-

-

                  -
            Put the back case down on a table in front of you with the bottom of the phone close to you.
-
            Put the key guard's tabs into the corresponding tabs on the bottom of the rear casing.
-
            While the key guard's tabs are in the rear casing, put the rear casing's tabs into the bottom of the front casing.

-

-

                  -
            To join the 3 pieces together, push the front and rear casing together so that the clips on the front casing lock into the holes on the rear casing.
-
            Slide the antenna guard on.

-

-

                  -
            Locate the holes that connect the keypad guard to the rear casing.
-
            Find a thin and sturdy screwdriver.
-
            Insert the screwdriver into the holes in the plastic rod connecting the key pad guard to the rear casing.
-
            Use the screwdriver to push the rods away from each other until they click into a locked position.

-

To reassemble your device, follow these instructions in reverse order.
