Introduction

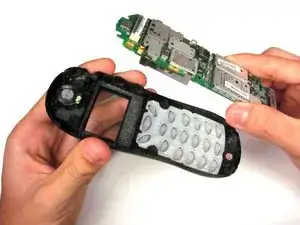

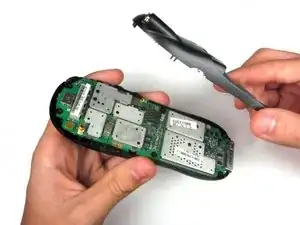

This process involves first removing the battery and outer case. After, the motherboard can be easily removed.
Tools
-
-

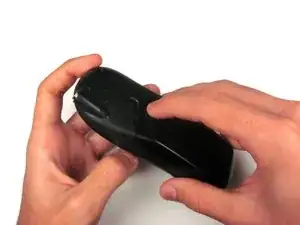

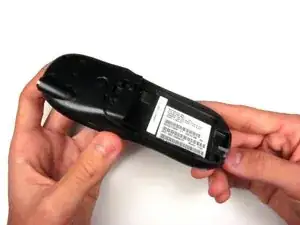

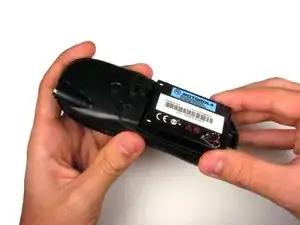

Hold the phone and pull the back latch down towards the bottom.
-

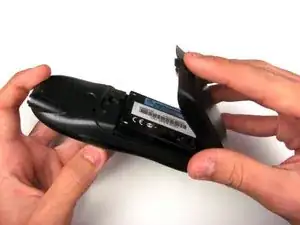

Remove the back panel by releasing the latch and lifting from the top.
-
-
-

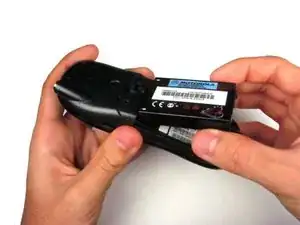

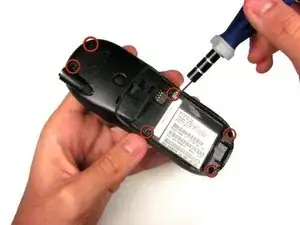

Once the battery is out, unscrew the six 7.0 mm screws with T-6 screwdriver.
-

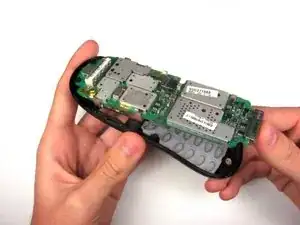

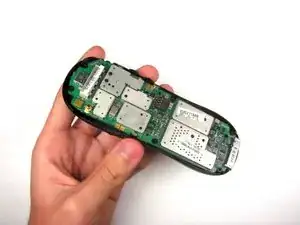

Once the screws are removed, simply lift the back panel off
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
