Montgomery Ward GEN-39500 Internal Power Supply Replacement

Written By: Dustin Platt
  • Comments: 0
Montgomery Ward GEN-39500 Internal Power Supply Replacement

Difficulty

Moderate

Steps

6

Time Required

10 - 20 minutes

Introduction

This is a guide for replacing the internal power supply unit.

  1. 3jHfsZhlPZOBLati

    • Remove the nine 35 mm Phillips screws securing the back cover of the case.

  2. 1hPmGNv2AqgpnPMt

    • Carefully remove the back cover.

    • Soldered wires connect electronics on the back cover to the internal electronics. Be careful not to break any connections.

  3. NPwQSujrKxXRMwR5
    NPwQSujrKxXRMwR5
    6TPidkR6A5mMCJHE

    • Unplug the black and yellow wires connecting the power supply unit to the rest of the electronics:

    • This is not necessarily required. This step is to allow the back cover more movement as you work on the inside of the unit.

  4. pFopjdSYUMcFfwji

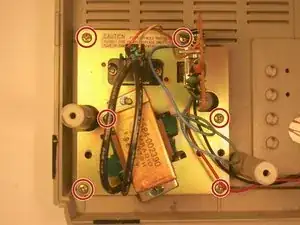

    • Unscrew the six 10 mm Phillips screws holding the mounting plate in place.

  5. YjL6Sb2ZcfsaUA2Z
    YjL6Sb2ZcfsaUA2Z
    DaRaOauADCQktFjA
    WSwJ5iXjJTCPBYFi

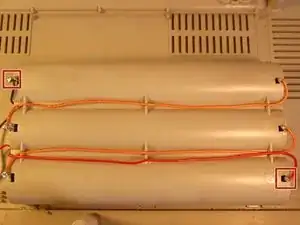

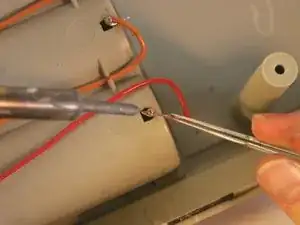

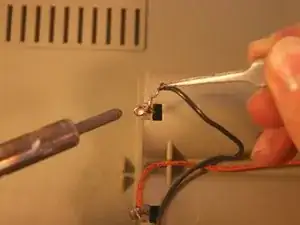

    • Unsolder the wires connecting the power supply unit to the battery container.

  6. WEWGYW5n6BMgYSjl

    • Remove the power supply unit.

Conclusion

To reassemble your device, follow these instructions in reverse order.
