Mitsubishi T200 Keyboard Replacement

Written By: Katherine
  • Comments: 0
Mitsubishi T200 Keyboard Replacement

Difficulty

Easy

Steps

5

Time Required

15 - 30 minutes

Introduction

This short, simple guide will help you replace the rubber keyboard buttons on a Mitsubishi T200 cellphone.

  1. vGoBJ3AcU6YARlOZ

    • Begin disassembling the phone by removing the back of the phone and the battery.

  2. 4hLPoipL3fQrNc2u

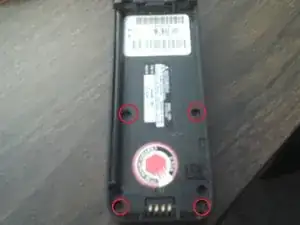

    • Remove the back plate by removing the 4 screws in the back plate using an appropriately sized Philips screwdriver

  3. bSfIOQtbSPXPWyoN

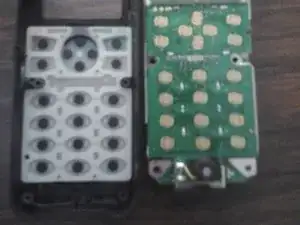

    • Pry the font plastic component from the “motherboard” component.

  4. wBQnGUHfrxuj6sOI

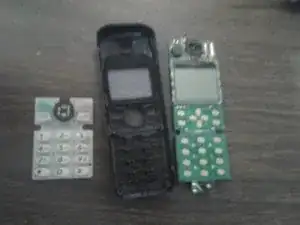

    • Take out the old rubber keypad and replace with a new one.

  5. ejHwQjYP4gYLNqm2

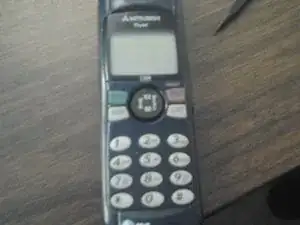

    • Reassemble by following previous steps in reverse order.

Conclusion

To reassemble your device, follow these instructions in reverse order.
