Milwaukee Rotary Hammer 260520 D14A 2016 Forward/Reverse Shuttle Replacement

Written By: Sophie Nieder
  • Comments: 0
Milwaukee Rotary Hammer 260520 D14A 2016 Forward/Reverse Shuttle Replacement

Difficulty

Moderate

Steps

8

Time Required

25 minutes

Introduction

If the Milwaukee 2605-20 Drill is not allowing orientation switching, follow this guide to inspect and replace the forward/reverse shuttle.

The screws on this device are not easily removed.

  1. aPPSuIEiWIYIqtR3

    • Remove the battery by sliding it from the base.

  2. QhKBsfrBheSU4TWL

    • Remove two 20.3 mm screws at the right side of the drill base using a Torx T3 screwdriver.

  3. sTngW2eqpvYcFA3G
    sTngW2eqpvYcFA3G
    QSuYvKZEQvhFTZHD
    UEDqCvwLprHXwnR6

    • Remove five 20.3 mm screws on the right side of the handle using a Torx T3 screwdriver.

  4. 5yasRnqJFKkvnILx
    5yasRnqJFKkvnILx
    XSDEVHXf64pauMZj

    • Remove four matte 24 mm screws on the crankcase at the rear cover of the drill (connecting the chuck to the handle) using a Torx T3 screwdriver.

  5. WrUTN4Te1MthQnaO

    • Remove two 24 mm screws on the housing cover beneath the ventilation slots. These screws point into the drill.

  6. bEPpPB55Fo3mse1s
    bEPpPB55Fo3mse1s
    EIDgoXB1S3QQyXAe

    • Using a Torx T5 screwdriver bit, remove two 26.8 mm screws on each side of the drill housing cover, located beneath the ventilation slots. These screws point upwards.

  7. BtEHrsARYKQw3hOm

    • Gently pry apart the covers for the drill handle.

  8. VE4SYFUOdoGPRsvb
    VE4SYFUOdoGPRsvb
    DmtMBUNkde6TbwNy

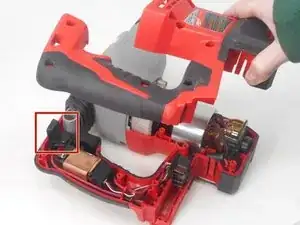

    • Locate the forward/reverse shuttle on the drill, just behind the drill trigger mechanism.

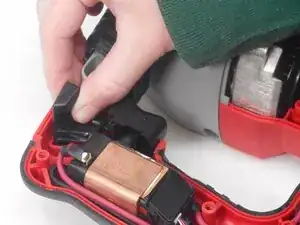

    • Gently pull the trigger down and remove the damaged fwd/rev shuttle.

    • Add in the replacement part, ensuring that the shuttle locks into place.

Conclusion

To reassemble your device, follow these instructions in reverse order.
