Milwaukee M12 2407-20 Shuttle Spring Plate Replacement

Written By: Allison Schieber
  • Comments: 0
Milwaukee M12 2407-20 Shuttle Spring Plate Replacement

Difficulty

Moderate

Steps

5

Time Required

10 minutes

Introduction

This guide will walk through the steps to replace the shuttle spring plate on the Milwaukee M12 2407-20.

  1. PqZcEKp3l34gYCTQ

    • Remove each of the seven 14mm Pan Hd. T-10 ST screws on one side of the housing assembly using the T10 screwdriver.

  2. ODF1exI6sgvUvCSs

    • Remove metal clip located at the base of the drill, where the battery is to be inserted.

    • You may need to use a spudger if the clip is too difficult to remove with your fingers.

  3. odLTlHif6x2aKPny
    odLTlHif6x2aKPny
    CcIREF5Ffnv2ohnL
    sSv1cSYXtsZlvNZG

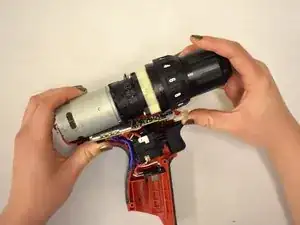

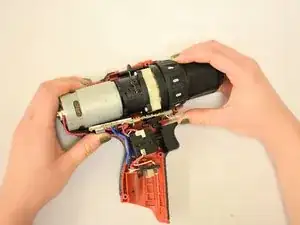

    • Use both hands to lift and remove the gear case assembly from the shell casing.

    • Set the gear case assembly aside.

  4. VJjyWMhIIUB2YNTo
    VJjyWMhIIUB2YNTo
    ljMSCJJCBNAEIUPA

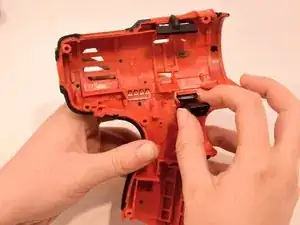

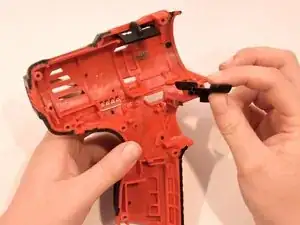

    • Remove the forward/reversing shuttle to gain access to the spring plate.

  5. wKos5YZkfPBCZ5Aw

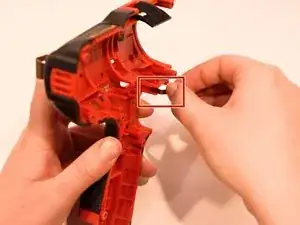

    • Remove the spring plate and insert replacement spring plate.

Conclusion

To reassemble your device, follow these instructions in reverse order.
