MiTM Pressure Washer CM1400HDEC1 2017 Motor Assembly Replacement

Written By: Taylor Dixon
  • Comments: 0
MiTM Pressure Washer CM1400HDEC1 2017 Motor Assembly Replacement

Difficulty

Moderate

Steps

5

Time Required

5 - 15 minutes

Introduction

Follow the steps in this guide to remove and replace the motor/pump assembly of a Mi-T-M CM1400HDEC1 electric pressure washer.

  1. STHvV4PEqrTFIWcQ
    STHvV4PEqrTFIWcQ
    KeM52ciOXZREWTeh

    • Disconnect all hoses and unplug the power cord before performing any repairs on the Mi-T-M electric pressure washer.

  2. DsibdIA3dWjUAPkX
    DsibdIA3dWjUAPkX
    OP4VQ4vwIBYDKC6w

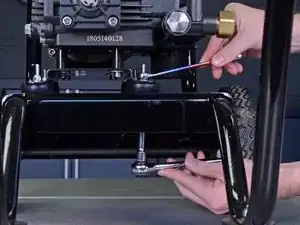

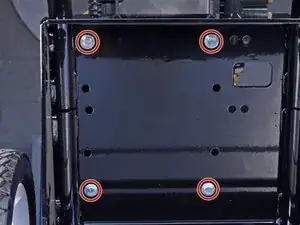

    • Use a socket wrench to remove the four 47.9 mm-long 11 mm hex head bolts holding the motor in place from the bottom of the frame assembly.

    • Only remove these bolts while the pressure washer is in an upright position.

    • You will likely need an additional 11 mm wrench to hold the nuts on top of the stacks in place as you loosen the bolts.

  3. N2ZtZmNoKltXwdeZ
    N2ZtZmNoKltXwdeZ
    53SIh3jTnOMxpLcb

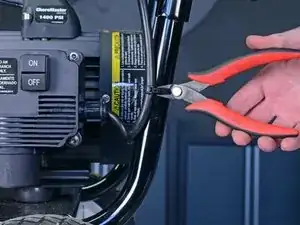

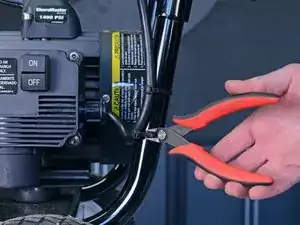

    • Remove the zip ties holding the power cord to the frame assembly.

    • During reassembly, replace these zip ties after you have bolted the motor in place to ensure there is enough slack between the frame and the electrical box.

  4. UAFDSOLF2BkJxAkQ
    UAFDSOLF2BkJxAkQ
    DRdAjZgUKRQiLOJr

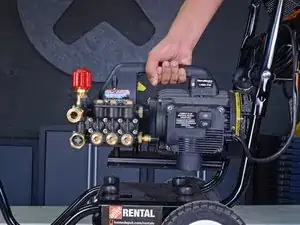

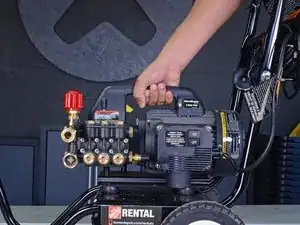

    • Remove the motor and pump assembly from the frame.

  5. 2goMqvGDJB6XXb3f

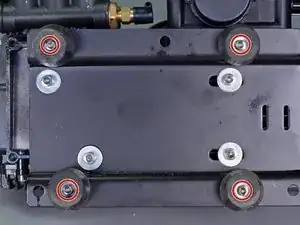

    • If your replacement motor comes with pre-installed rubber isolator feet, remove the bolts in them before installing the new motor to the frame assembly.

    • You can re-install the motor with the new feet or the original ones, but only the original 11 mm hex head bolts from the frame assembly are long enough to safely secure the motor to the frame.

Conclusion

To reassemble your device, follow these instructions in reverse order.
