Mantis Tiller 7566 2017 Carburetor Assembly Replacement

Written By: Trevor A
  • Comments: 4
Mantis Tiller 7566 2017 Carburetor Assembly Replacement

Difficulty

Easy

Steps

4

Time Required

10 minutes

Introduction

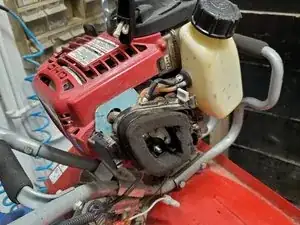

  1. Iabq14XNqLYb26Y5
    Iabq14XNqLYb26Y5
    MkKMkwSJDM3Gkejj

    • Remove the air filter cover.

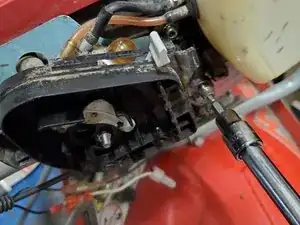

  2. IGrJjohAMneOUWAg
    IGrJjohAMneOUWAg
    ATNJarwojEZ6IDYp

    • Remove two 5/16 standard nuts under the air cover.

    • Remove the last two bolts pictured with a 5/32 Allen wrench.

    • Note the order you remove the bolts. The top is usually longer than the bottom.

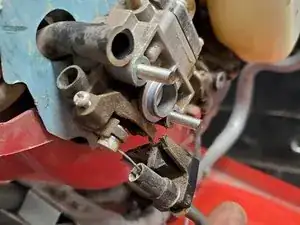

  3. L5Tyo2TCHwFaqXrL
    L5Tyo2TCHwFaqXrL

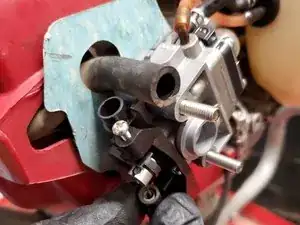

    eQ4y53jCLgheniJs

    • Remove old carburetor and install the new one. Remove the throttle cable and reinstall with needle nose pliers. Tighten throttle cable to carb part #16100-Z0Z-034

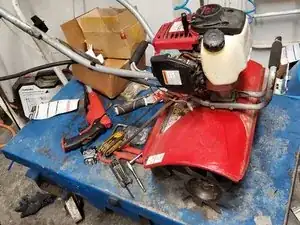

  4. B2CYPmBolWORMUTK

    • Reassemble and test throttle.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Author

Trevor A

Member since: 16/09/21

1381 Reputation

4 comments

whats the part number

ROGELIO -

16100-Z6K-WB3 is the carb i used and worked for a mantis XP tiller.

THOMAS -

can't find clutch part NO#

ROGELIO -

cant find the gasket part number between the carb and the piston

ANTHONY -
