Introduction
This is a guide detailing the steps to replace the armature.
Tools
-

                  -
            Check for the provided lock nut wrench. This is used for loosening the piece that keeps the disk and cover attached.

-

-

                  -
            Hold the black switch located on the front casing.
-
            Still holding the switch, use the lock nut wrench to loosen the silver disk holding everything in place.
-
            Once loose, remove the silver disk and/or your grinding disk.

-

-

                  -
            Use a Phillips #02 screwdriver to remove the 15 mm pan head screw that holds the cover in place.
-
            Remove the cover by lining up the knob on the cover with the notch in face plate.

-

-

                  -

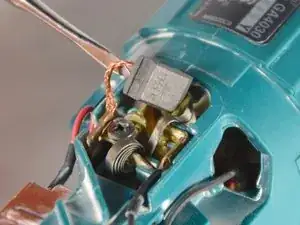

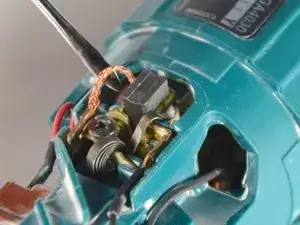

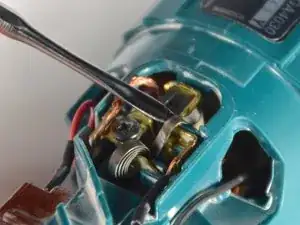

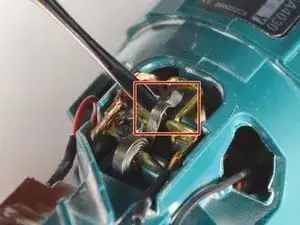

            Using a metal spudger, remove both carbon brushes (one on each side) by their copper cabling.

-

-

                  -

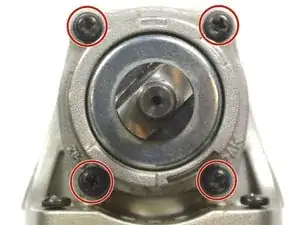

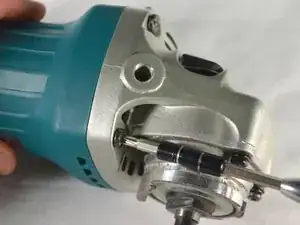

            Use a Phillips #2 screwdriver to remove the four 20 mm tapping screws that hold the armature assembly in place.
-

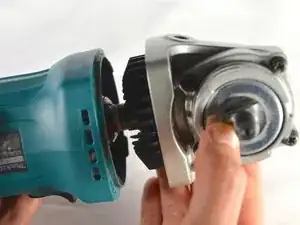

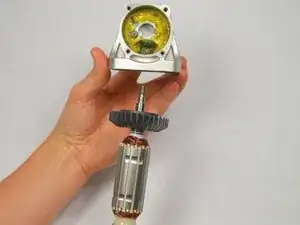

            Remove the armature assembly

-

-

                  -

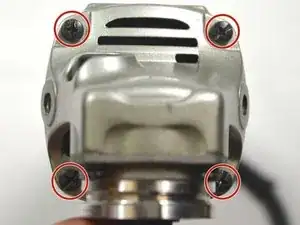

            Unscrew the four 10 mm tapping screws holding the faceplate using a Phillips #02 screwdriver.
-

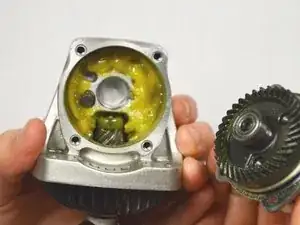

            Remove the faceplate.

-

-

                  -

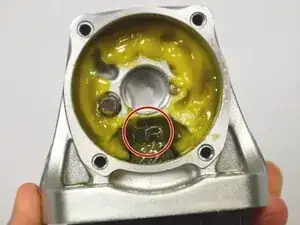

            Hold the highlighted nut with a size 10 wrench. Unscrew by turning the armature and holding the nut in place.

-

To reassemble your device, follow these instructions in reverse order.
