Magnavox MWD200F Disk Drive Replacement

Written By: Taryn
  • Comments: 1
Magnavox MWD200F Disk Drive Replacement

Difficulty

Easy

Steps

11

Time Required

5 minutes

Introduction

  1. Ir5FE4aCnnLe4YdS

    • Use a Phillips #2 screwdriver to remove the two screws on the top of the device toward the back.

  2. 4KwpZAQKkgXEoPAL

    • Remove the plastic cover by lifting up the back and pulling it away from the faceplate.

  3. ecHTS4g2OVggWKIQ

    • Unclip the three latches on the bottom of the device.

  4. Ncxn2Mpr511UJvgq

    • Pull the faceplate off.

  5. xw2C2rKmXaKgNwJN
    xw2C2rKmXaKgNwJN
    NVTW5UNMyhgCbe34

    • Use a Phillips #2 screwdriver to remove the two screws at the base of the disk drive.

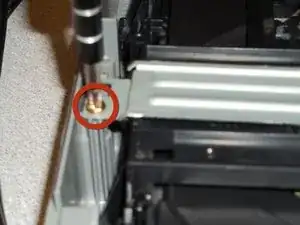

  6. sm4Qan1PdXoaE2xt
    sm4Qan1PdXoaE2xt
    cLvEXlyFDv6tNsGM

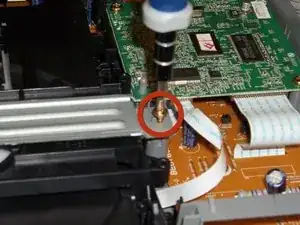

    • Use the screwdriver to remove two screws on either side of the silver security bar.

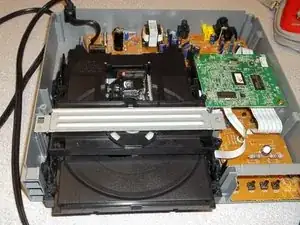

  7. tAAkUy1wVQXAgeUK
    tAAkUy1wVQXAgeUK
    iJ66ZZsfRPnPAWXP

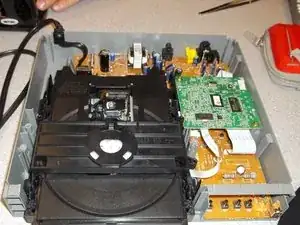

    • Pull out the silver security bar and set aside.

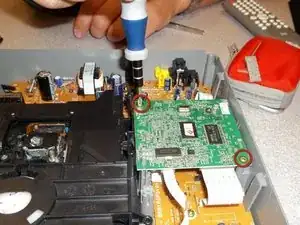

  8. MvDDHPuCTMyjYPMR

    • Take out the two screws on either side of the green circuit board.

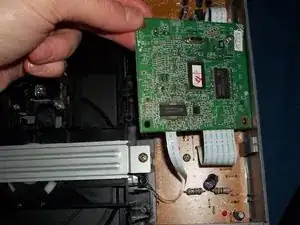

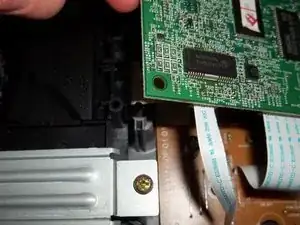

  9. v4KKZIBBMxf2aYng
    v4KKZIBBMxf2aYng
    PC5ivnEDN1NEbYtq

    • Carefully lift the board just enough to remove the disk drive.

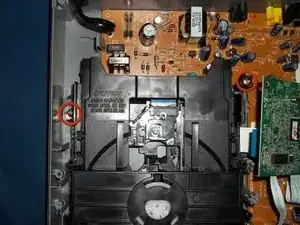

  10. AwnQ6Z2LCjqaFjdY
    AwnQ6Z2LCjqaFjdY
    q3YU3AN2EINx4GBG
    Xi3XQk5fEeIUJNUR

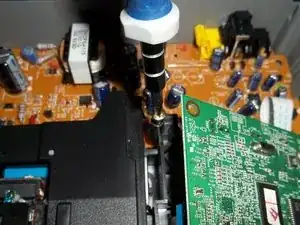

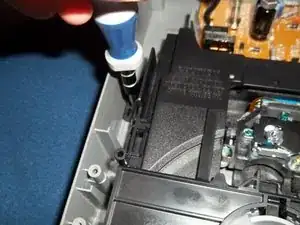

    • Remove the two screws at the back of the disk drive.

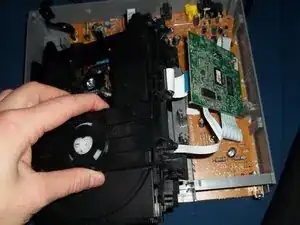

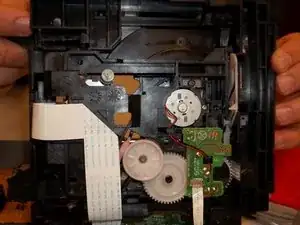

  11. xHYsaP4xETujnZHe
    xHYsaP4xETujnZHe
    XqWVUFYqc33s1sZb

    • Gently lift the disk drive out of the DVD player.

    • The disk drive is still attached but you are now able to get to underneath it for cleaning and maintenance.

Conclusion

To reassemble your device, follow these instructions in reverse order.
