Logitech M325 Scroll Wheel Replacement

Written By: mykayat_YU
  • Comments: 0
Logitech M325 Scroll Wheel Replacement

Difficulty

Easy

Steps

8

Time Required

10 minutes

Introduction

If your Logitech M325 mouse scroll wheel is unresponsive, damaged, or behaving unpredictably, this guide will help to replace your scroll wheel. The scroll wheel is a part of the mouse which allows the user to scroll through windows, navigate backwards, navigate forwards and use the middle click button. If one of these functions do not work, your scroll wheel is most likely damaged.

  1. BqY32qGZ66AZFCm4

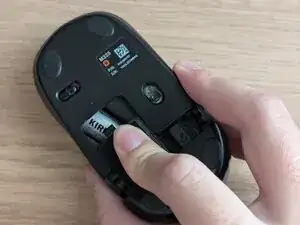

    • Caution: Before you begin, ensure that the mouse is powered off (red color displayed on the switch). The switch can be found at the bottom of the mouse.

    • Remove the battery cover from the bottom of the mouse by sliding downwards.

  2. Rtmg32bRryj3Xk2a
    Rtmg32bRryj3Xk2a
    lfBGwPLVAiVdHGyM

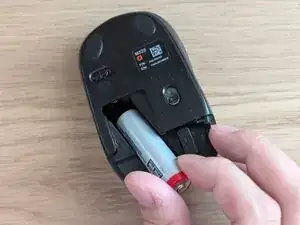

    • Lift out the AA battery.

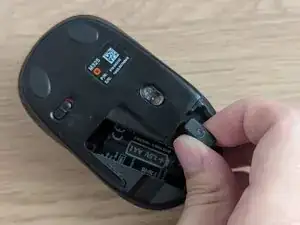

    • Remove the USB adapter.

  3. Eo3ypE551mpWCQOT

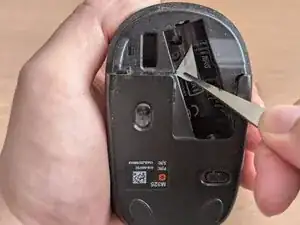

    • Peel off the sticker in the battery compartment to reveal the screw underneath.

  4. OmEJtoId555Kaxq3
    OmEJtoId555Kaxq3
    HxBNOy4yTPhRJHZD

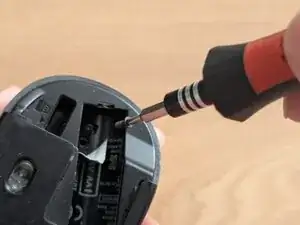

    • Use a Phillips #0 screwdriver to remove the 5 mm screw in the battery compartment.

  5. p5hQ3PbQMaasXo2X
    p5hQ3PbQMaasXo2X
    BITdvEeJ2vqVCXAb

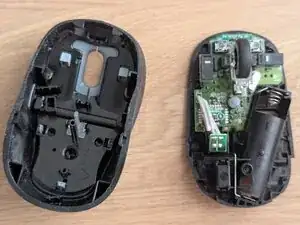

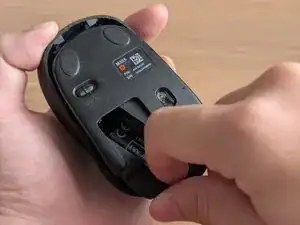

    • Slide the lower case downwards and separate the top case from the main mouse body by lifting it off.

  6. alfLkdCAR5XPftEs
    alfLkdCAR5XPftEs
    NCNtBckujbTPLwcL

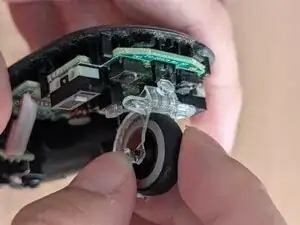

    • Use a pry tool to unclip the scroll wheel from the PCB by pushing the clip out of the holder.

    • Remove the scroll wheel by lifting it up.

  7. G3cbtfGOmNtHCFYK
    G3cbtfGOmNtHCFYK
    mwETHNAqXOMUaSUC

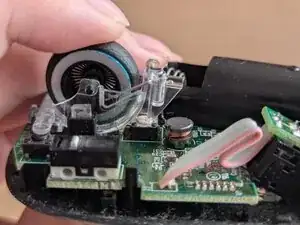

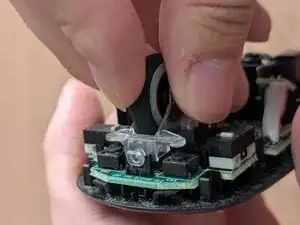

    • Align the replacement in the same position as the old scroll wheel.

    • Push down and clip in the scroll wheel.

  8. MsSSNVkEAjqaDc1M
    MsSSNVkEAjqaDc1M
    yQXAaQqSrNpYv6Lt
    xtHIqIjYPoo3OFLG

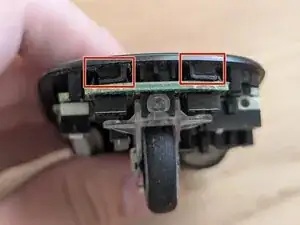

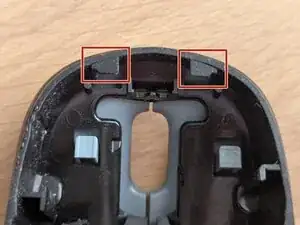

    • Align the top housing clips with the mouse body clip openings.

    • Slide top housing back onto mouse by pushing it in.

Conclusion

To reassemble your device, follow steps 1-4 in reverse order.
