Lenovo Yoga Tablet 2 830-F Motherboard Replacement

Written By: Charles Rhode
  • Comments: 0
Lenovo Yoga Tablet 2 830-F Motherboard Replacement

Difficulty

Easy

Steps

3

Time Required

15 - 20 minutes

Introduction

  1. nSpKnYeVKIePg1NO
    nSpKnYeVKIePg1NO
    JQXUkYBlWGYjKFTI

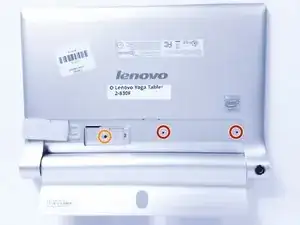

    • Remove the two 3mm screws on the back of the device with the Phillips Screwdriver #00 bit.

    • Remove the 2mm screw on the back fo the device with a Phillips #00 bit.

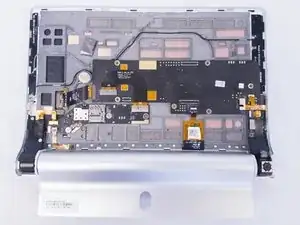

    • Using the blue opening tools or spudger, gently remove the back cover to expose the interior of the tablet.

  2. UdMyyjKqyEHpjiKK
    UdMyyjKqyEHpjiKK
    DPRMvxMlxQaZOr1Z

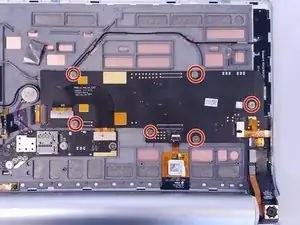

    • Remove the six 3mm screws on the back of the motherboard with the Phillips Screwdriver #00 bit.

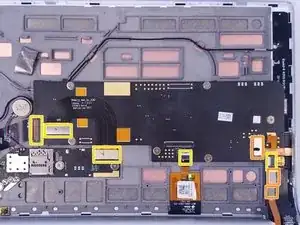

    • Remove the ribbon cables connecting the boards to the other electrical components

    • Remove ZIF connectors connecting the boards to the electrical components.

    • Some of the ribbon cables are secured with clips, simply pry up the clips before sliding them out of the pin connectors.

  3. PYpHFOsikO25NQX2
    PYpHFOsikO25NQX2
    XNKJoYwlbfgQogIa

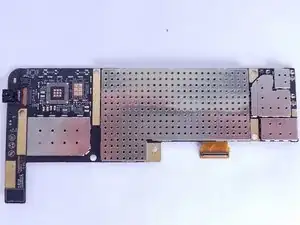

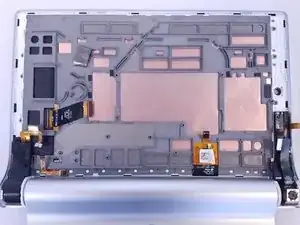

    • Replace the motherboard with the new motherboard.

    • Be careful not to damage the ribbon cables when reassembling the device.

Conclusion

To reassemble your device, follow these instructions in reverse order.
