Lenovo Yoga Tablet 2 830-F Display Replacement

Written By: Mario Gjyli
  • Comments: 0
Lenovo Yoga Tablet 2 830-F Display Replacement

Difficulty

Moderate

Steps

4

Time Required

40 minutes - 1 hour

Introduction

This guide will walk you through the process of removing and replacing a damaged display on your Lenovo Yoga Tablet 2 830-F, ensuring each step is handled carefully to avoid any further damage.

  1. hBCl5CEbcUI5cNYc
    hBCl5CEbcUI5cNYc
    UCUJdNPt5GlXfslW

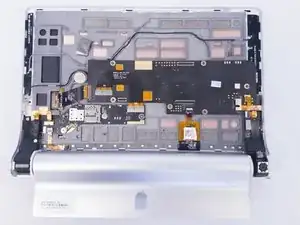

    • Remove the three screws on the back of the device with the Phillips Screwdriver #00 bit.

    • Using the blue opening tools or spudger, gently remove the back cover to expose the interior of the tablet.

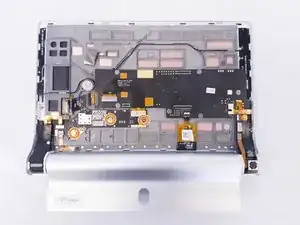

  2. CpOdZOJJceW4IAvq
    CpOdZOJJceW4IAvq
    s1ODFjAEBNIMCVUy
    cEHT6vSJcAjnY1bX

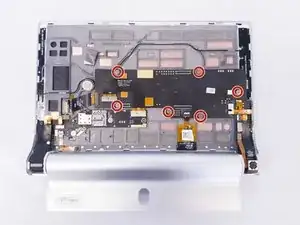

    • Remove the six screws on the back of the motherboard with the Phillips Screwdriver #00 bit.

    • Remove the three screws on the back of the secondary board with the Phillips Screwdriver #00 bit.

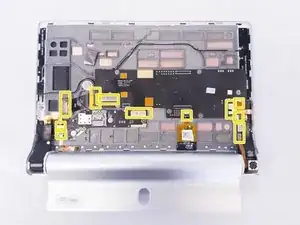

    • Remove the ribbon cables connecting the boards to the other electrical components

    • Some of the ribbon cables are secured with clips, simply pry up the clips before sliding them out of the pin connectors.

  3. urvPVSKoBNTqy3BB
    urvPVSKoBNTqy3BB
    IaMOcZlgRjG2corn
    wV6bNuQ3kBeRWUEZ

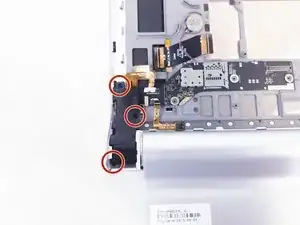

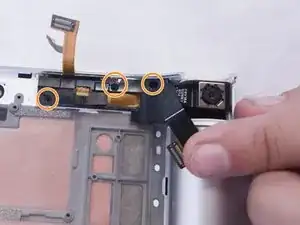

    • Remove the three 2mm screws on the back of the left speaker module with the Phillips Screwdriver #00 bit.

    • Remove the three 2mm screws on the back of the right speaker module.

    • Gently remove both the left and right speaker modules.

  4. NiAbaDAMY6hJ2KSn
    NiAbaDAMY6hJ2KSn
    VUcWKPifUQErWoDq
    NsK3QJmDaDvpNuA4

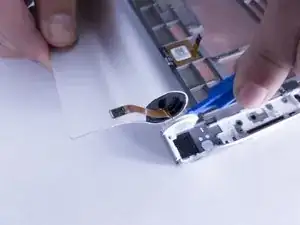

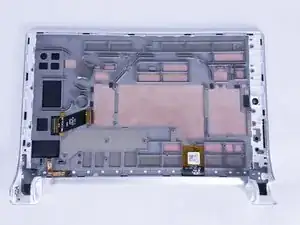

    • Use the opening tool to pry the battery compartment off the right hand side of the back.

    • This may require a decent amount of force to accomplish. If you feel like the white plastic holder will break, try using the spudger at a different angle.

    • Do not attempt to use the spudger on the right hand side of the device. It must be done on the left side.

    • The display and housing for the screen are one piece and would be bought together.

Conclusion

Well done on replacing your tablet's display! Reassemble your device by following these instructions backwards, ensuring all parts are correctly aligned and secure. Enjoy your refreshed Lenovo Yoga Tablet!
