Lenovo Yoga C930-13IKB Fingerprint Reader Replacement

Written By: Elizabeth Miller
  • Comments: 16
Lenovo Yoga C930-13IKB Fingerprint Reader Replacement

Difficulty

Easy

Steps

9

Time Required

15 minutes

Introduction

This guide includes all the steps, tools, and parts necessary to disassemble the Lenovo Yoga C930-13IKB to access and replace the fingerprint reader.

  1. PGwdSeNHuIIRRAXY

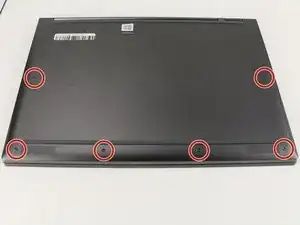

    • Flip the device over so that the underside is facing up.

    • Remove the six 3.5 mm T5 Torx screws.

  2. FiWHDiuuINDJFtQr
    FiWHDiuuINDJFtQr
    t5ZLbWjWV6hmBpOI

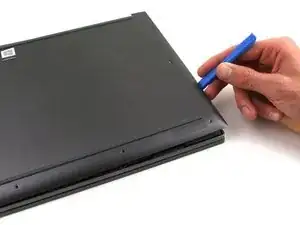

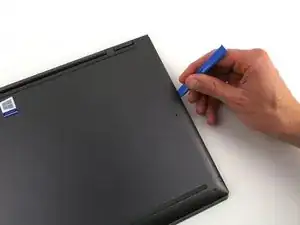

    • Pry off the back cover using the plastic opening tool.

    • Loosen the back cover in multiple spots using the opening tool, then remove the whole back.

    • You may have to run the plastic tool along the edges until you find a small gap to separate the back cover from the laptop.

    • Do not use a metal tool when working with your device.

    The gap is so small that I wasn’t able to insert anything to pry the cover up. The suction cup tool lifted the cover off easily.

    Thomas Capobianco -

    There is a very convenient spot to begin the prying process. Up by the hinge, where the metal back turns in perpendicular to the edge to get around the hinge mechanism, there is a gap between the cover and the rest of the laptop where it can be pried up easily. From there it is easy to run a tool and widen the gap all the way around.

    Alex Yantis -

    I tried Thomas's suggestion first, and it worked like a charm: the suction cup took it right off.
    Instead of pushing the cup against the laptop I "pulled it flat" and placed it against the back, so it'd just suck onto it. (Didn't want to deform the laptop cover)

    Panopticon -

    Opening this up again to re-seat the SSD ...and find that Alex's suggestion is also very good. I would start with his suggestion and then move to Thomas's if the back doesn't just jump off.

    Panopticon -

  3. DeoIJJRpX2hNONcY
    DeoIJJRpX2hNONcY
    k1uvqt3b2ScVvJ5s

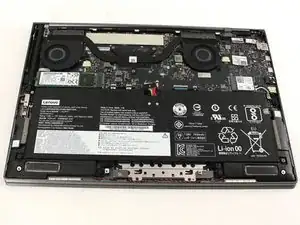

    • Carefully lift the cover off with your hands.

  4. 2FISN3TQKpsRcePJ
    2FISN3TQKpsRcePJ
    bh26yNV5wwwpRZOk
    642aakhV2bHDgExw

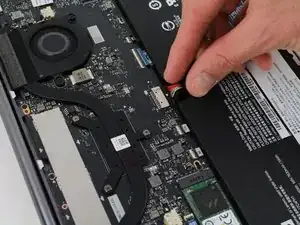

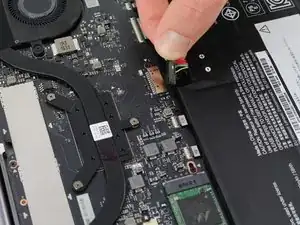

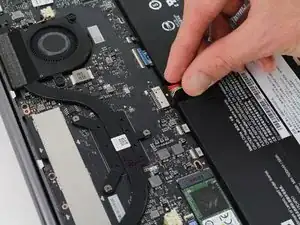

    • Unplug the battery from the motherboard by pinching the cables with your fingers and tugging out with force.

    • Use the spudger for assistance.

    Pull cables toward yourself.

    Delphine Jacquet -

    I was not able to grasp the wires with the battery mounted. Once I removed the battery from the case, the connector was easy to remove

    Thomas Capobianco -

    I suggest waiting until you have unscrewed and un-stuck the battery from the laptop before removing the cable. It makes it much easier to get a hold of the wiring harness/plug so as to pull it out.

    ALSO, if you're reading this, HIGHLY RECOMMENDED that you stop now and read all of the comments below, including the ones at the very end, after the CONCLUSION section. There's stuff that's not covered in the main steps.

    Panopticon -

  5. QCvoFCpoH5HXqOPU

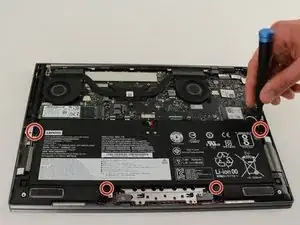

    • Unscrew the four 3mm screws with a Phillips screwdriver.

    I used a PH000 for this

    Matt Orienter -

  6. bNLnHfbRxsCJbsCk
    bNLnHfbRxsCJbsCk
    WJNbDD4VLA3Qt5qW

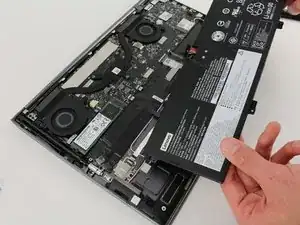

    • The battery is still held in place with two stretch-release adhesive strips, similar to ones found in an iPhone.

    • Use your fingers to pry up the clear plastic pull-tab for one of the stretch release adhesives.

    • Grasp the pull-tab and slowly pull away from the battery at a shallow angle. The adhesive strip will stretch to many times its length and slowly release from underneath the battery.

    • Repeat the procedure for the second strip on the opposite side of the battery.

    • Be careful not to bend the battery. Breaking the battery is dangerous.

    • Remove the battery with your hands.

    There are two clear plastic tabs wrapped around the sides of the battery that connect to the glue strips between the battery and the backlight cover. All you have to do is peel the clear strips from the battery and pull them away. The glue under the battery pulls out like a Command Strip. No need to wreck your backlit cover and possibly the cabling underneath with tools.

    Brian Storm -

    Oh man I really wish I would have expanded the comments before continuing; something that took me an hour of painstaking prying could have been taken care of in 30 seconds. USE THE PULL TABS TO REMOVE THE ADHESIVE STRIPS!

    Ben Borgert -

    Hi Brian,

    Thanks for the tips! I’ll amend the guide to include this info.

    Arthur Shi -

    I still don’t understand Step 6. Also does the new battery stick to the existing adhesive strip?

    Allen Michael Cohen -

    @BenBorgert - agree 100%!! I would also add that I had to give the cover a nudge towards the hinge (something seemed to click into place) to get the screw holes lined up

    Thomas Capobianco -

    Did you replacement battery come with replacement adhesive strips? Mine didn't.

    If you want to re-use the existing strips, you'll want to remove them carefully. As noted in the instructions, pull those clear tabs slowly and at a shallow angle. If possible, use one hand to pull and the other to hold the lengthening strip as it emerges. The goal here is to NOT LET THE STRIP SNAP OUT when it breaks free. If it does, it might snap together in a sticky, un-reusable mess.

    So, take it slow, gather the excess as it emerges, and then you can stick the strips onto your new battery.

    Put them in the same spot on the new one as they were on the old one (just below the top screw-bracket). And when you put the new battery in place, try not to let it stick hard to the laptop. You will need some wiggle to line up the screw holes. More on that below.

    Panopticon -

    FYI, there are two very tiny metal posts in the laptop, immediately below the upper left and right screw holes. These are meant to align with some holes on the screw-brackets on the battery. So there are 3x things that hold the battery in place:

    1) the screws

    2) the "command strips"

    3) the 2x tiny metal posts

    When you put the battery in, you'll need to get both of those little posts to thread through the corresponding holes on the screw-brackets on the battery. For me, it was a matter of connecting the battery cable, gently placing the battery into the laptop, being careful NOT to press it into the sticky strip. (I pressed it in the first time and needed to take it out again, because I could not line up the 2xposts or the 4x screw holes. ) So put it in there and hover it above the screw-holes, taking care to line them up as best you can. Line up the 2x posts as well, and thread them through the little holes. Once these are threaded, check to be sure that your screw-holes are lined up and screw it in.

    Panopticon -

    Great instructions. Just replaced battery on my Yoga C930 without any issues although it took a little longer than expected. Thanks for the step by step guide!

    Tim J. -

  7. bAcQ4nsUoi2Hhb1C
    bAcQ4nsUoi2Hhb1C
    yNM1miEhSKERECDn

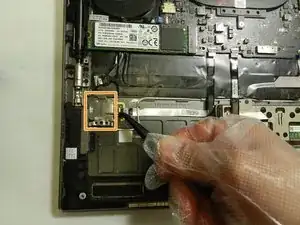

    • Remove the single 2 mm screw from the fingerprint reader cover plate using the Phillips #00 screwdriver.

    • Gently lift and slide out the cover plate using a pair of angled ESD tweezers.

  8. 6FqBLkhoJnSKuyHr
    6FqBLkhoJnSKuyHr
    UCoHv5k2PEYfIogY

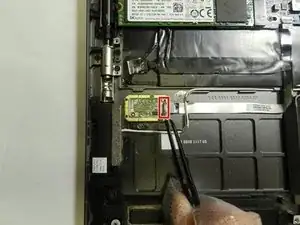

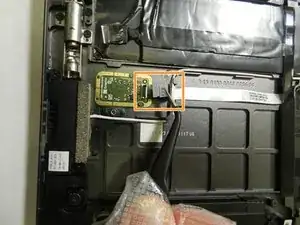

    • Using the angled ESD tweezers, gently lift the black tab on top of the ZIF connector on the fingerprint reader.

    • Gently pull the ribbon cable out from the connector using the tweezers.

  9. qOpZ5GNlLoPMuiLd
    qOpZ5GNlLoPMuiLd
    WRfauGIiDHyJrnkV
    3AqIy4qhOoKdn33l

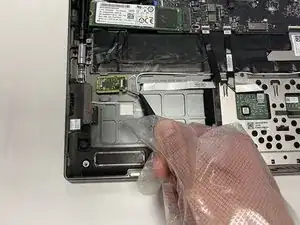

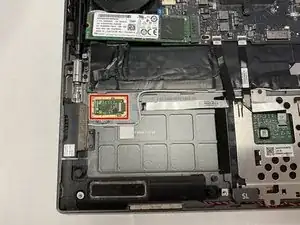

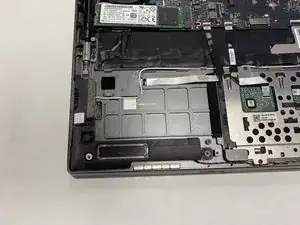

    • Lift and remove the fingerprint reader from the laptop using the angled ESD tweezers.

Conclusion

To reassemble your device, follow these instructions in reverse order.
