Lenovo Yoga 720 Fingerprint Reader Replacement

Written By: Aiden
  • Comments: 2
Lenovo Yoga 720 Fingerprint Reader Replacement

Difficulty

Moderate

Steps

9

Time Required

15 - 25 minutes

Introduction

This guide will show you how to remove the fingerprint reader.

  1. FL2m4Hq5DT1LgjQ5
    FL2m4Hq5DT1LgjQ5
    YjtELAyB3pohOOO4
    sAkjrjiNnT6oqbU2

    • Before you begin, be sure to turn off your laptop and discharge the battery down to 25%.

    • Start by flipping the device over so that you see the screws.

    • Remove seven Torx T5 short screws.

    • Remove three Torx T5 long screws.

  2. hfTPAjtqQmXQHRH1
    hfTPAjtqQmXQHRH1
    mVPhNaq1IixiUAhS
    jT1Wy5dwcqpIQZeV

    • Starting from the USB port, use your opening tool to gently pry up the case.

    • Make sure you are prying on the cover itself, not the metal shield around the USB port.

    • Pry along the laptop in the order shown by the arrows.

    • Do NOT pry along the top side, or you risk damaging the casing. Stay with the arrows.

  3. 5wvxLJqhry23JAsX
    5wvxLJqhry23JAsX
    4dZUco1OA4HfhJvE
    jMtoaRrXOksHKSSu

    • Lift the case from the bottom side. NOT the side with the hinges.

    • When you feel resistance, do NOT keep lifting or you will damage the housing.

    • Once you feel resistance, gently pull the case towards you. (away from the hinges.)

    • Remove the case.

  4. kWHeUqMJoAfXbXD1
    kWHeUqMJoAfXbXD1
    RKVctXeDSt3IPSlD
    bkdmKTG5nClTNf1v

    • This is the battery. For guides that are for other parts, the battery is removed for the reason of it being a pain to connect or disconnect while screwed in.

    • Be careful not to short anything on the motherboard, as the battery cannot be disconnected before removal.

    • Remove four J1 Philips screws.

    • Remove one J1 philips screw.

    • Do not mix these screws up. If you put the longer screw where the shorter screw belongs, you will damage the shield around the keyboard.

    • Lift the battery slightly using your plastic opening tool.

    • Do not lift the battery out all the way, as it is still connected to the motherboard.

    • Do NOT puncture or deform the battery or it may catch fire or even explode.

  5. EdBArGjCXT1LYl4f
    EdBArGjCXT1LYl4f
    rRgAC5MmN3gGQS34
    s6qCaDgVmSArpBgN

    • Pull the battery towards you until the wire is accessible.

    • gently tug and wiggle on the wire until it pops out.

    • Remove the battery.

    awsesome! thank you so much for the instructions!

    justmelendez -

  6. M6SOWvKIF5BFiMS4
    M6SOWvKIF5BFiMS4
    It15F4FlIjXcVvrO

    • Disconnect the speakers.

  7. JYgKLyGKsYtUVRyj
    JYgKLyGKsYtUVRyj
    O4RadltFECuJJBfh
    bEOucSPgIuDdXtII

    • Remove the left speaker.

    • Remove the Adhesive.

    • Use this pull tab to remove it.

    • Remove the right speaker,

  8. Gk5CStI4LcJHNJIY
    Gk5CStI4LcJHNJIY
    MnF3uys2AYdZCZd2
    dwIDMhtLriZXARvL

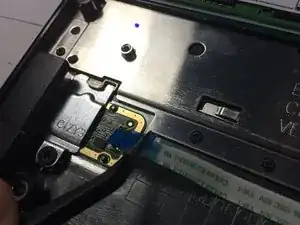

    • Using a spudger, lift up on the black connector of the ZIF socket on the end of the ribbon cable connecting to the fingerprint reader.

    • Be sure to make sure your pulling up the tab, not the socket! if you pull the socket you will damage the motherboard. You can check how to disconnect the cable using this guide.

    • Disconnect the cable from the socket.

    • Remove 1 JIS1 screw securing the bracket in place.

  9. bEW21T12eD1g2NmK
    bEW21T12eD1g2NmK
    QrytmfEAAPIaC4Js
    OtZVmfGsnMYDiJDG

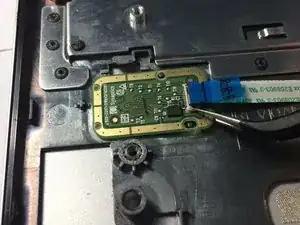

    • Remove the bracket,

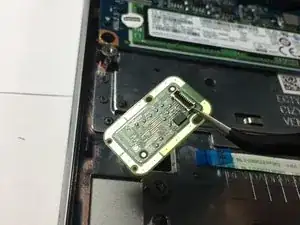

    • Remove the fingerprint reader.

Conclusion

To reassemble your device, follow these instructions in reverse order.
