Lenovo Yoga 710-14ISK Battery Replacement

Written By: Max Kletskov
  • Comments: 1
Lenovo Yoga 710-14ISK Battery Replacement

Difficulty

Moderate

Steps

3

Time Required

No estimate

Introduction

How to replace the battery of a Lenovo Yoga 710-14ISK laptop. The images and information in this guide were taken from this computer's service manual.

  1. ocfacekymGRHXXNY

    • Remove the M2 × 7 mm, Torx-head screws.

    • Remove the M2 × 5 mm, Torx-head screws.

  2. MnaLSX6CTDgCBaOR
    MnaLSX6CTDgCBaOR
    pmgkNbbxuuncMSrD

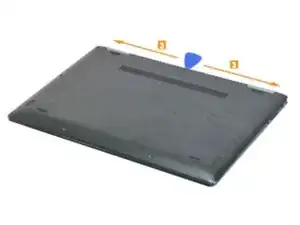

    • Insert a prying tool (opening pick) between the base cover and the cover and slide it in the direction shown by arrows to separate the base cover from the cover.

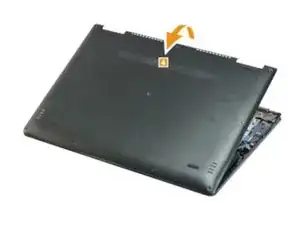

    • Remove the base cover.

  3. RjQ5mfeZcVdXGIqD

    • Unplug the battery connector.

    • Remove the M2 × 3 mm, Phillips-head screws.

    • Remove the battery pack.

Conclusion

To replace the battery & reassemble your device, follow these instructions in reverse order.
