Lenovo Yoga 3 11 Trackpad Replacement

Written By: Slade Fernandes
  • Comments: 1
Lenovo Yoga 3 11 Trackpad Replacement

Difficulty

Moderate

Steps

9

Time Required

30 - 40 minutes

Introduction

Is your laptop's trackpad not reacting when you use it? Then you will probably need to replace it and this guide will help you accomplish the task!

  1. AAVh2CkV5jUoPnoC

    • Remove the eleven 6 mm T5 Torx screws securing the lower case.

    • Gently lift the lower case up and away from the device.

  2. YhDy5lbm2mtNi2Pl
    YhDy5lbm2mtNi2Pl
    SaFCZoLsj6jCg1d6
    GekNZPsRYDmNPCIf

    • Remove the two 3 mm Phillips #00 screws securing the battery.

    • There are arrows on the battery indicating the location of the screws.

  3. dMEuV4DpNGjBkqKO

    • Use a pair of tweezers to gently disconnect the battery connector.

  4. 2VVPpcFX4CCfta3M
    2VVPpcFX4CCfta3M
    GuqiUkWohHZUbPCL

    • Use a pair of tweezers to gently disconnect the speaker cable.

    • Remove the wires from underneath the battery tabs using the tweezers.

  5. RfvIeE4SRah4rCYO

    • Carefully remove the battery from the device.

  6. c6wA3NwUXDhq5MHS

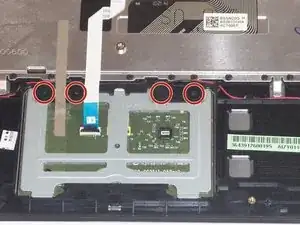

    • Remove the four 2 mm Phillips #0 securing the trackpad.

  7. 4WZa2lsMsNTL6PEK

    • Use the tweezers to partially remove the tape.

  8. Z6N5kqDYBJfSkTUY
    Z6N5kqDYBJfSkTUY
    YSZgPU1Z2brhoj43

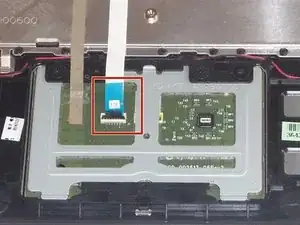

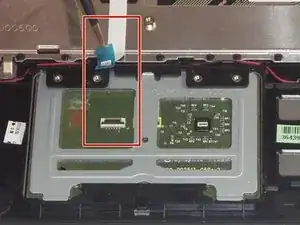

    • Use a pair of tweezers to disconnect the ZIF connector securing the trackpad ribbon cable. Gently lift up the black tab and the ribbon cable should come free.

  9. C5ipEZDDvVg4QIYc
    C5ipEZDDvVg4QIYc
    USEkWVC6M1Rsf4Mw

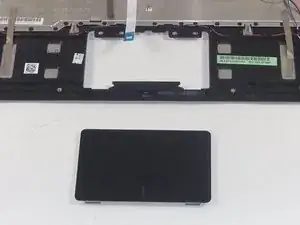

    • Slightly push down with your thumb to pop out the trackpad.

    • The laptop must be slightly open in order for the trackpad to pop out.

Conclusion

To reassemble your device, follow these instructions in reverse order.
