Introduction
This guide will solve issues involving a defective battery, such as: Unexpected Shutdown, Laptop not Charging, Laptop Shuts down when Unplugged.
-
-
Flip the device so the back is facing you.
-
Using the Phillips #0 screwdriver, unscrew the fourteen screws from the device.
-
-
-
Use the blue Opening Tool to pry-open the back cover.
-
Slide it around the perimeter of the PC freeing the back cover.
-
Remove the back cover from the device.
-
-
-

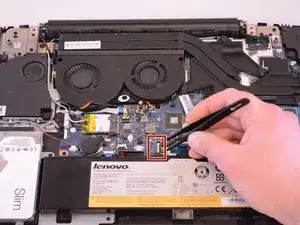

Use the Blunt Tweezers from the Tool Kit to disconnect the battery connections from the motherboard.
-

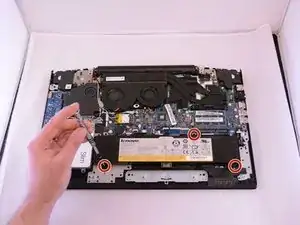

Remove the battery from the device.
-
Conclusion
To reassemble your device, follow the instructions on Step 3.
