Introduction
This guide is used for the replacement of the fan assembly in the Lenovo Thinkpad T450s. Ample lighting and storage for small parts recommended.
Tools
Parts
-

                  -
            Flip the laptop over so that the bottom is facing up.
-
            Unlock the battery by sliding the keys outwards. When unlocked, push the battery forwards to remove.

-

-

                  -

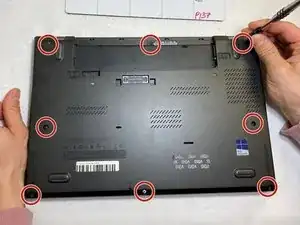

            Unscrew all 3.7 mm Phillips #0 screws from the back of the laptop. Half of them will remain attached to the cover.
-
            Lift off the back cover.

-

-

                  -

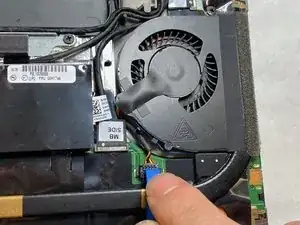

            Use a plastic opening tool or a nylon spudger to push the fan's bundled cable connector free.
-

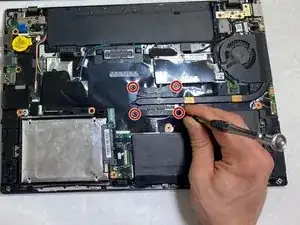

            Remove the fan and heat sink assembly from the motherboard.

-


                            Conclusion

                          To reassemble your device, follow these instructions in reverse order.
