Lenovo Thinkpad T450 Wi-Fi Card (WLAN) Replacement

Written By: Justin Ogihara
  • Comments: 1
Lenovo Thinkpad T450 Wi-Fi Card (WLAN) Replacement

Difficulty

Moderate

Steps

7

Time Required

6 - 10 minutes

Introduction

The wireless local area network (WLAN) card, or Wi-Fi card, is an essential component for laptops to establish and maintain wireless connectivity for internet access. The following symptoms can be signs of a failing or faulty Wi-Fi card:

  • Can’t connect to the internet
  • Connected to the router but no internet
  • My Wi-Fi address won’t show up
  • Wi-Fi connection keeps dropping

If your Lenovo ThinkPad T450 is experiencing any of the above symptoms, it may be time to replace the Wi-Fi card in your laptop. When you remove the back cover of the laptop to expose the inner components, the Wi-Fi card is typically fastened onto the motherboard by a single screw. Follow these simple instructions to replace the Wi-Fi card in your device.

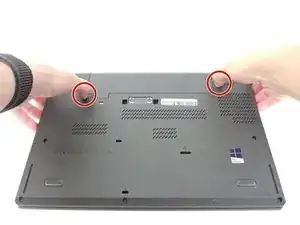

  1. GcEgrjAYTtgvMrJU
    GcEgrjAYTtgvMrJU
    qjQnqBoMZgCExG6c
    AUOQYlJw3tssVPZ6

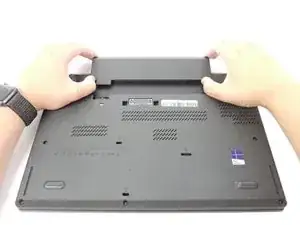

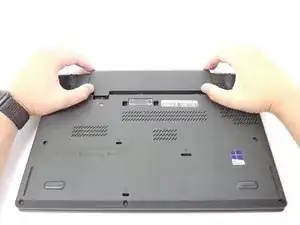

    • Using your hands, slide the two locking tabs away from each other to release the battery.

    • Slide the battery up and out of the device.

  2. kwDDPHTuMOwKALEQ

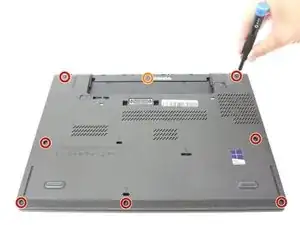

    • Using the JIS #00 screwdriver, unscrew seven screws from the back cover.

    • These screws are not removable and will remain in the back cover.

    • Use the JIS #00 screwdriver to remove the single 2.8 mm screw from the back cover.

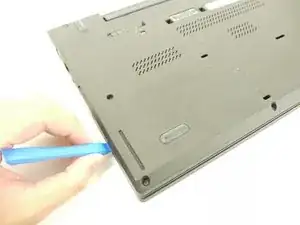

  3. kU4HR61EuVejlInR
    kU4HR61EuVejlInR
    KEUfVEn5PG6RJFLs
    YS3EHvoewHpZjH3b

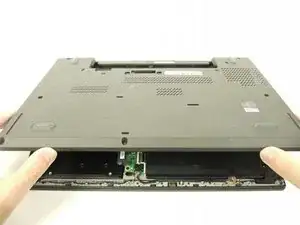

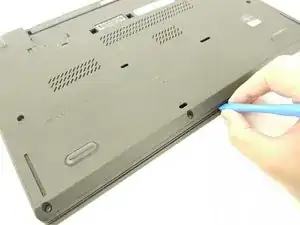

    • Insert a plastic opening tool into the edges of the laptop and work your way around the edges to pry off the back cover from the device.

    • Remove the back cover from the device.

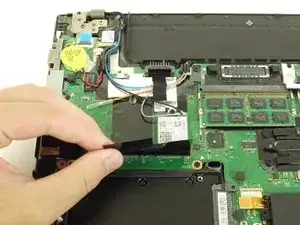

  4. LusNY3siLFTAkmtN

    • Lift and remove the black piece of plastic to expose the Wi-Fi card.

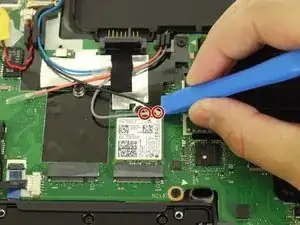

  5. WMTHpITD6tuppAU6

    • Using the plastic opening tool, disconnect the two cables from the Wi-Fi card.

  6. Ok1MIQlOAZQQBYAO

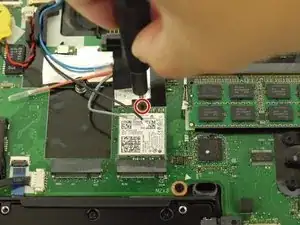

    • Using the JIS #00 screwdriver, remove the single 2.8 mm screw.

    • After removing the screw, the Wi-Fi card should pop up on its own.

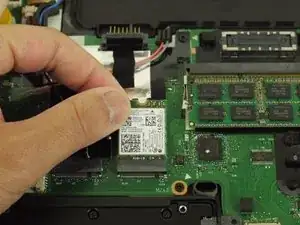

  7. of3pQvcVWJCPlH6I
    of3pQvcVWJCPlH6I
    1DwIj6e3SheaGPPZ

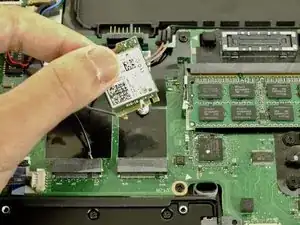

    • Lift the Wi-Fi card out of the slot and remove it from the device.

    Not to be Captain Semi-Obvious... but can you tell us the model of the wi-fi lan card? I am getting in my possession a t450 with wifi not working.. I have yet to look at machine to see if it is in fact a bad card.. but would like to be able to factor such cost into my purchase. I hope you see this relatively soon, as I have a Top Shelf bottle of ketchup for you if you reply soon!! Thanks

    Andre -

Conclusion

To reassemble your device, follow these instructions in reverse order.

Take your e-waste to an R2 or e-Stewards certified recycler.
