Lenovo Thinkpad T410i Screen Bezel Replacement

Written By: Gabriel Cordova
  • Comments: 0
Lenovo Thinkpad T410i Screen Bezel Replacement

Difficulty

Easy

Steps

4

Time Required

5 - 10 minutes

Introduction

This is just a prerequisite guide for the webcam and screen replacement guides.

  1. OFjUBjdVyepVmfFE
    OFjUBjdVyepVmfFE
    FxHJweZnFeFXcMZG

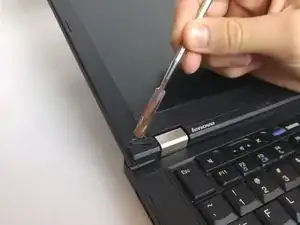

    • Use a spudger to remove the plastic covers from the LCD screen.

  2. L3vo3INnFNuMI2hi

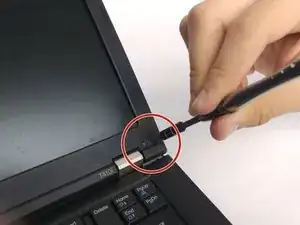

    • Remove the two 6.0mm screws on each side using Philips #0 head screwdriver as shown in the picture.

  3. TwXEpN6dwnZgCsVI

    • Use a spudger to separate the bezel of the LCD screen.

  4. AmQbJBZw2qLNNZei
    AmQbJBZw2qLNNZei
    jJXLFNZkOOCAgAXh
    yJhAt3QmAItWtGIh

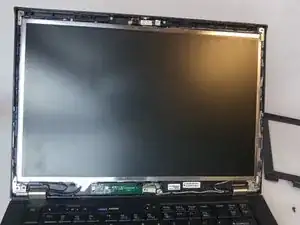

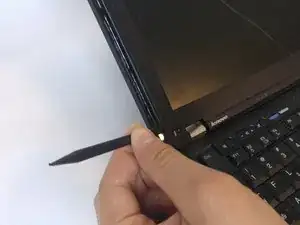

    • Continue along the edges lifting up and prying off the plastic LCD bezel.

Conclusion

To reassemble your device, follow these instructions in reverse order.
