Introduction
This guide will show you how to remove key parts to access the SSD. The SSD provides the laptop with external storage for performance.
SSDs have a limited lifespan, and over time, the factory-installed SSD in a laptop will age and eventually run out of usable storage. You would have to change the SSD. Getting extra data/storage provides the laptop with better performance power and space to render applications. This process should only take a maximum of 20 minutes to complete.
-
-
Use a Phillips #1 screwdriver to unscrew the five captive screws on the back panel until a small pop is heard.
-
-
-
Gently wedge an opening tool or spudger under the back panel, and loosen the clips around the perimeter until the back panel comes off.
-

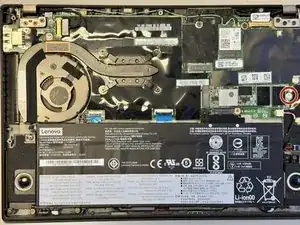

Remove the back cover.
-
-
-

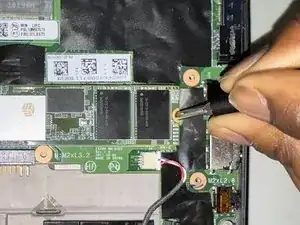

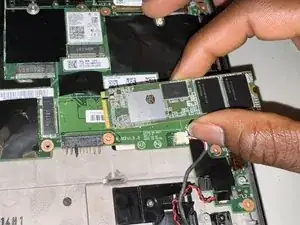

Grip the SSD on the sides with your thumb and pointer finger, pulling straight to the right side, removing it.
-
To reassemble your device, follow the above steps in reverse order.
Take your e-waste to an R2 or e-Stewards certified recycler.
