Lenovo ThinkPad T580 RAM Replacement

Written By: Austin Blakely
  • Comments: 0
Lenovo ThinkPad T580 RAM Replacement

Difficulty

Moderate

Steps

11

Time Required

25 minutes

Introduction

Use this guide to replace or upgrade the RAM modules in your Lenovo ThinkPad T580.

  1. bH5UrwETXLpnfOIV
    bH5UrwETXLpnfOIV
    CoMXxGHbyf2Ttpcc
    FjKZFIgZXfpHLaot

    • Slide the switch on the left side of the battery to the left.

  2. Zir3L3Gmfu24eoGQ
    Zir3L3Gmfu24eoGQ
    qhKY2GFRKyfpptT5
    rAMGcG6TJgfGOfkX

    • Slide the switch on the right side of the battery to the right while applying upward pressure on the battery.

  3. AOkeN5pdOWGGMpqX
    AOkeN5pdOWGGMpqX
    P3OOwXwW66ymiRgb
    MISSJJ6NVNvvLPv4

    • Pull the battery directly out of the socket

  4. GCsoyvaqyC2PN2GU
    GCsoyvaqyC2PN2GU
    eaD3ZrcZFDa1C1iS

    • Using a Phillips #00 screwdriver, unscrew the eight 3.3 mm captive screws on the bottom of the laptop.

    • The "captive" screws will not come out of the case.

  5. sjOTZxvlwbAAF45C
    sjOTZxvlwbAAF45C
    XsKRybZDpGufCN3u
    bHaxTxZQBIIfLwuL

    • Run a Jimmy along the crease of the computer all the way around, twisting it periodically to disengage the clips.

  6. K1Px6bcaJXYYvWUK
    K1Px6bcaJXYYvWUK
    vIK55aCeZ5LlppDy
    hhvR1RX5GEbvbmYI

    • Once all the clips are released, remove the bottom cover.

    • You may need to jiggle the case slightly to release the clips around the external battery bay.

  7. kFwSEXpZyBCKQuPs

    • Using a Phillips #00 screwdriver, remove five 3.7 mm screws holding down the battery.

  8. wP65KmKyxf1YcsSK
    wP65KmKyxf1YcsSK
    3piUQ2RVgvjFBuVS
    RfuNCP1liATJOHoN

    • Unplug and remove the battery connector from the motherboard.

    • Remove the internal battery.

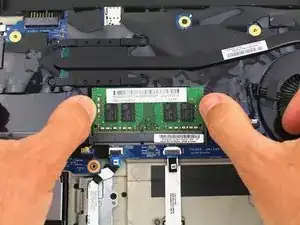

  9. lksGXHDHYejQIJVl
    lksGXHDHYejQIJVl
    qCBU3RTwbMY2j5dp
    TCv5kvHQkqMMSpWR

    • Pull the two tabs on either side of the RAM card outwards with your fingers.

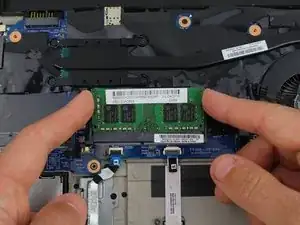

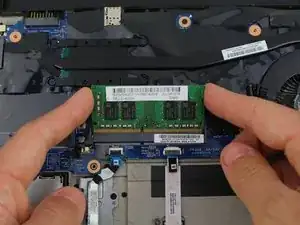

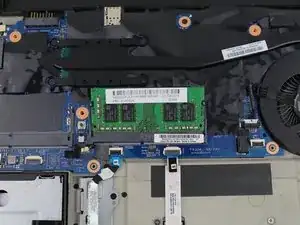

  10. vYrPXnoSuEOJSYwL
    vYrPXnoSuEOJSYwL
    GQZJm3sl3IkrZ3lJ
    GRofCBgUNVumdeVX

    • The RAM module should pop up to rest at an angle to the motherboard.

    • Pull the Wi-Fi card out from the port by the edges of the card.

    • Try to remove and insert the card at the same angle at which it rests with respect to the motherboard.

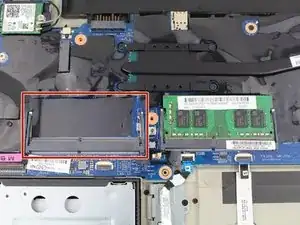

  11. HPu2JuZ2FouYcBje
    HPu2JuZ2FouYcBje
    5IElNcZMerSIL2QK

    • Remove the RAM module from the laptop.

    • Repeat the same process for the second RAM module if your computer included one.

Conclusion

To reassemble your device, follow these instructions in reverse order.
