Lenovo ThinkPad T530 Hard Drive Replacement

Written By: Albert Stoynov
  • Comments: 0
Lenovo ThinkPad T530 Hard Drive Replacement

Difficulty

Easy

Steps

7

Time Required

1 - 3 minutes

Introduction

Follow this guide to replace the hard drive, or solid state drive in your Lenovo T530/T530i.

  1. 2PrjuIlkIpDCKFeI
    2PrjuIlkIpDCKFeI
    NmufGfTBGGZQT1Tb

    • Ensure that the laptop is disconnected from the wall charger, and that the laptop is entirely powered off before following any of the steps below.

    • Flip your laptop upside down, so that the keyboard is facing down.

  2. taReXrsbNj14l1iu
    taReXrsbNj14l1iu
    GoFyZALGIY3b6k1d

    • Locate the latch located on the battery near the top of the laptop.

    • Using your finger, slide the latch to the right-most (Unlocked) position.

    • None of this should require an exhuberant amount of force.

  3. OYXXXGYitNL2LT4B
    OYXXXGYitNL2LT4B
    HPEmEPkAkT63R51G

    • You can now pull the battery away from the laptop. When pulling the battery out, ensure to pull it out straight.

  4. VGg6CesGgIpNISXl
    VGg6CesGgIpNISXl
    MUO3kyFwICGwIOrF
    sPGrCQZHmSnjyANo

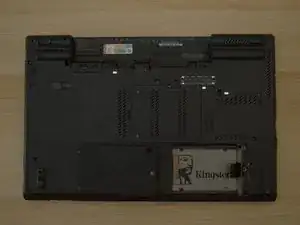

    • Using a Phillips #00 screwdriver, remove the bottom screw to unlock the storage drive cover.

    • Lift up the storage drive cover from the lip highlighted in orange. Put it aside.

  5. WOqNPJIDKHcmLSPi
    WOqNPJIDKHcmLSPi
    SfmFjQZyJHveVVW5

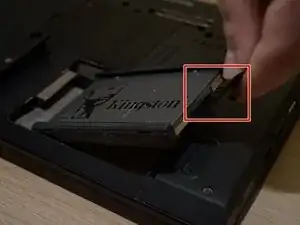

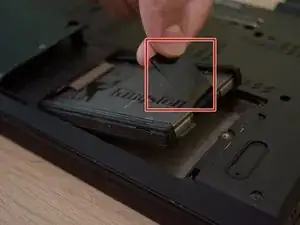

    • Pull the storage drive out of the slot from the tab.

    • Pull the drive at an angle, and not directly up as this could cause damage to the sata connector.

  6. chXPOEIPwMODAEoT
    chXPOEIPwMODAEoT
    oLFcR5efr1LQ1RDE

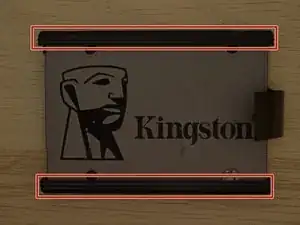

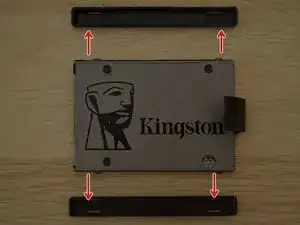

    • Grab the rubber spacers highlighted in red, and pull them away from the drive.

  7. UwhiXhKUyYLE6wQi
    UwhiXhKUyYLE6wQi
    h4COUOpHMORG2JJn

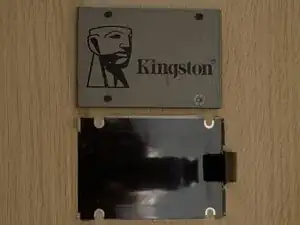

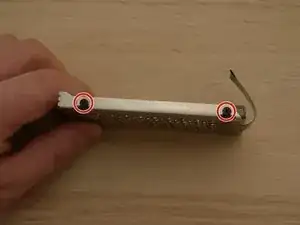

    • Using a Phillips #00 screwdriver, unscrew the four screws, two on each of the left, and right side of the drive.

Conclusion

To reassemble your device, follow these instructions in reverse order.
