Introduction

This guide will show you how to replace a RAM stick in a Lenovo ThinkPad T470S laptop. RAM replacement may be necessary if there is an error in your RAM or if there is not enough RAM.

  1. XrlNPGyNEXvDuwQ4

    • Use a Phillips #000 screwdriver to remove the five 7 mm screws from the bottom of the laptop.

    • Lift the bottom panel up and off the laptop.

  2. Ydrg3sgV5DlmpHS3
    Ydrg3sgV5DlmpHS3
    rZgwXurbbLY4MEcZ

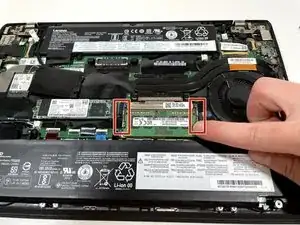

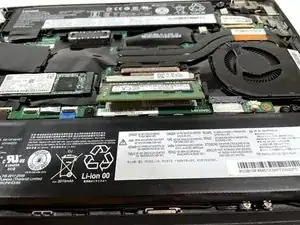

    • Push out the spring-loaded mechanism that is holding the RAM stick in place.

    • Slide the RAM stick out.

Conclusion

To reassemble your device, follow these instructions in reverse order.
